2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Shift the select lever to "N" range.
- Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle.
- Remove the center exhaust pipe. (Non-turbo model) Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>REMOVAL .
- Remove the center exhaust pipe (rear). (Turbo model) Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL .

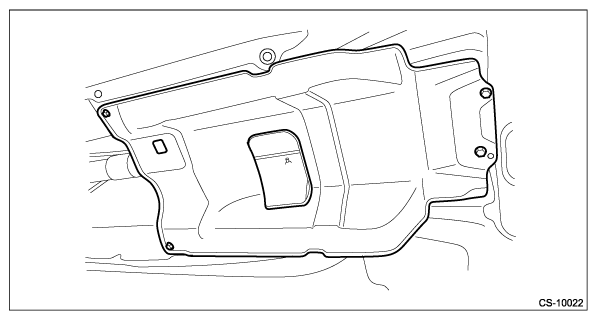

- Remove the center exhaust cover.

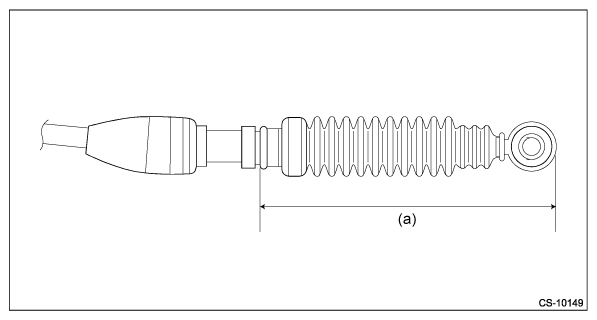

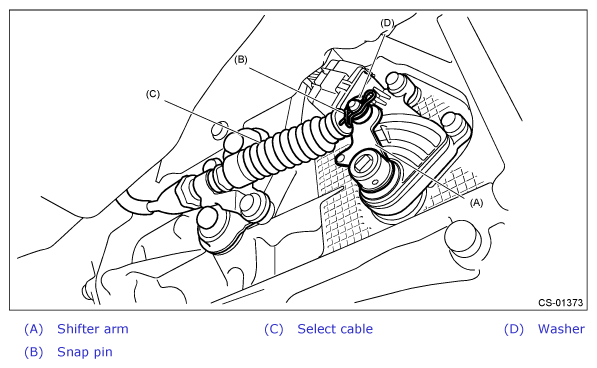

- Remove the snap pin and washer from the shifter arm.CAUTION: Do not apply excessive load while holding the part (a).

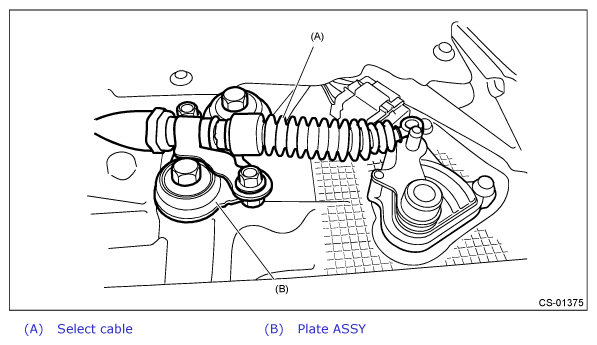

- Remove the plate assembly from the transmission case.

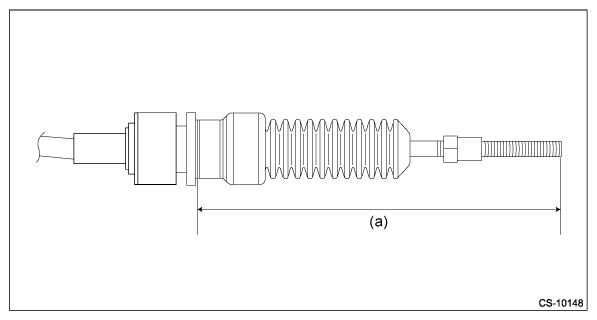

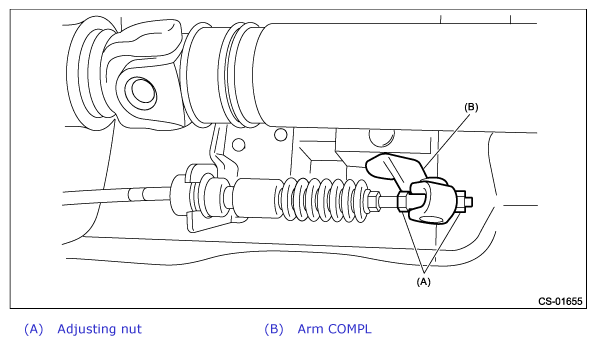

- Disconnect the cable from arm COMPL.CAUTION: Do not apply excessive load while holding the part (a).

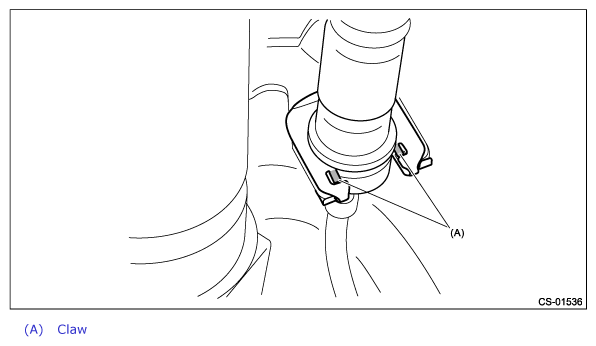

- Raise the claw of clamp to remove the cable from bracket.
- Remove the select cable from plate assembly.
