2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Data Link Connector: Note
This connector is used for Subaru Select Monitor.
CAUTION:
Do not connect any scan tools other than Subaru Select Monitor or general scan tool because the circuit for Subaru Select Monitor may be damaged

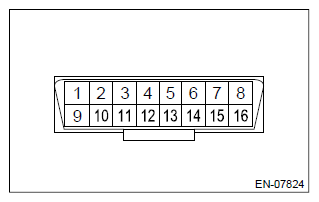

| Terminal No. | Content | Terminal No. | Content |
|---|---|---|---|
| 1 | Not used | 9 | Not used |
| 2 | Not used | 10 | Not used |
| 3 | Not used | 11 | Not used |
| 4 | Ground | 12 | Not used |
| 5 | Ground | 13 | Not used |
| 6 | CAN communication (Hi) | 14 | CAN communication (Lo) |
| 7 | Not used | 15 | A/B batch operation |
| 8 | IG2 | 16 | Power supply |
