2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Intake Manifold: Disassembly

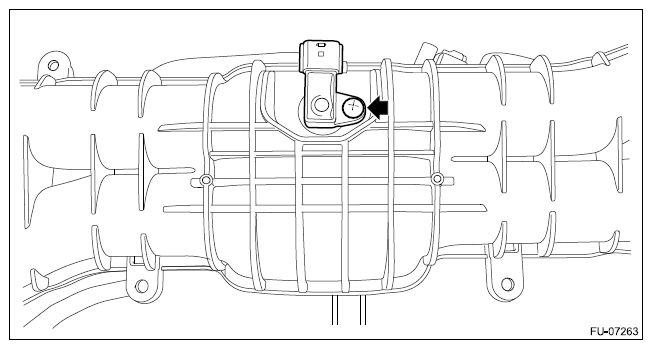

- Remove the manifold absolute pressure & intake air temperature sensor from the intake manifold.

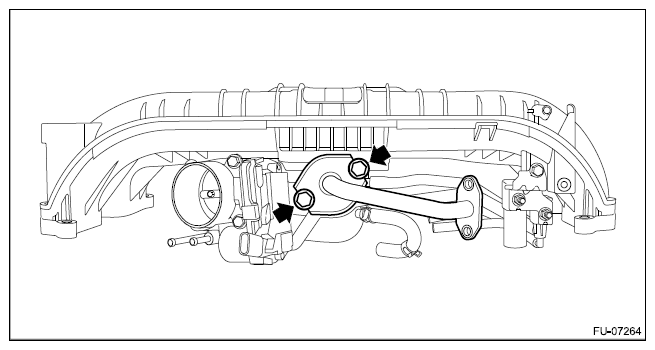

- Remove the EGR pipe from intake manifold.

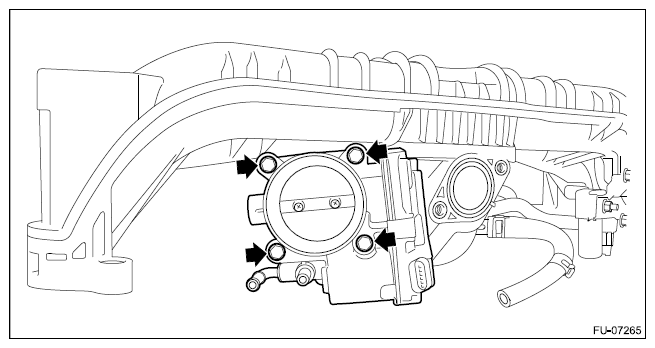

- Remove the throttle body from the intake manifold.

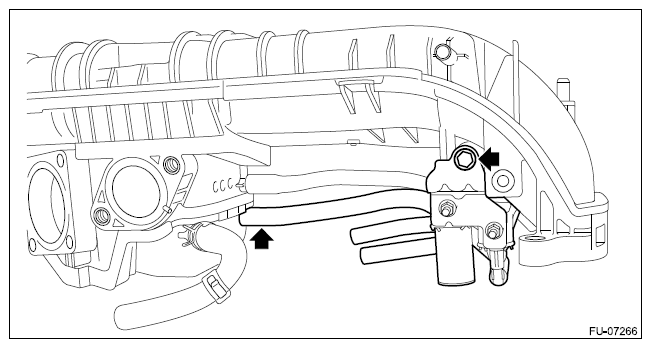

- Disconnect the vacuum hose from the intake manifold, and remove the purge control solenoid valve.

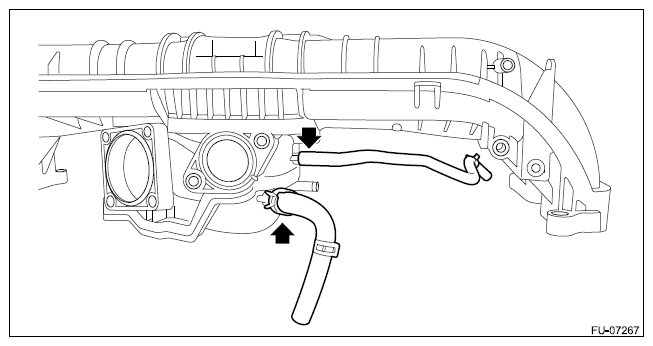

- Disconnect the PCV hose and vacuum control hose from the intake manifold.
