2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE

Fuel Tank: Installation

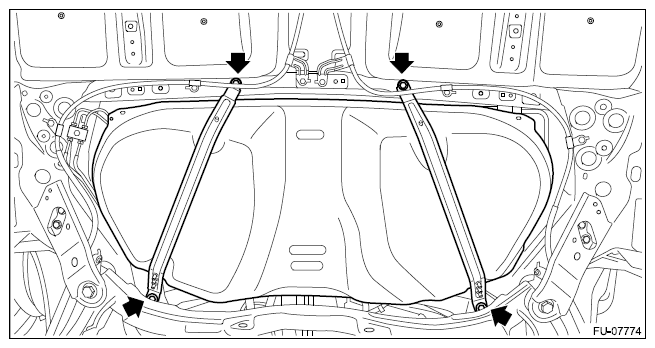

  1. Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
    WARNING: A helper is required to perform this work.
    G12509075Courtesy of SUBARU OF AMERICA, INC.
  2. Tighten the bolts of the fuel tank band in the order shown in the figure.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

    Fig 1: Fuel Tank Band Bolts Tightening Sequence
    G12509076Courtesy of SUBARU OF AMERICA, INC.

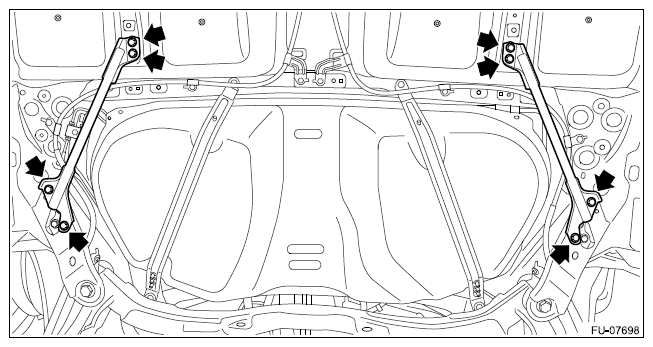

  3. Install the stay - rear frame COMPL.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

    G12509077Courtesy of SUBARU OF AMERICA, INC.

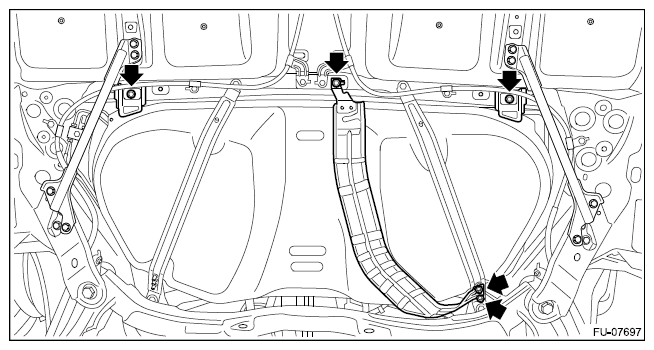

  4. Install the heat shield cover and stopper.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G12509078Courtesy of SUBARU OF AMERICA, INC.
  5. Install the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Tank Protector>INSTALLATION .
  6. Connect the vent tube to the canister.
    CAUTION:
    • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
    • Make sure that the quick connector is securely connected.
