2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Front Oxygen (A/F) Sensor: Removal
- Disconnect the ground cable from battery.
- Remove the radiator sub fan and fan motor assembly. Ref. to COOLING (H4DOTC)>Radiator Sub Fan and Fan Motor>REMOVAL .
- Lift up the vehicle.
- Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

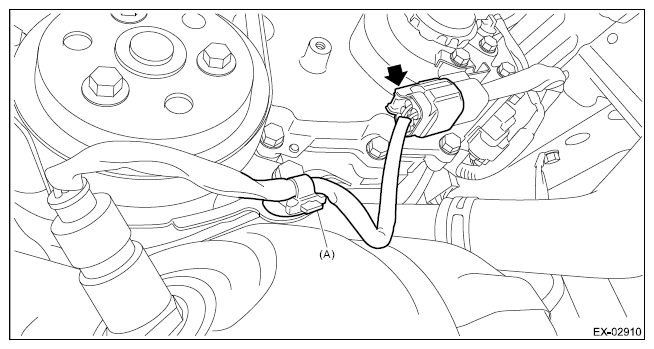

- Disconnect the connector on the front oxygen (A/F) sensor from the engine wiring harness, and remove the clip (A) securing the front oxygen (A/F) sensor harness to the water pump cover.
- Apply spray-type lubricant (004301003) to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.

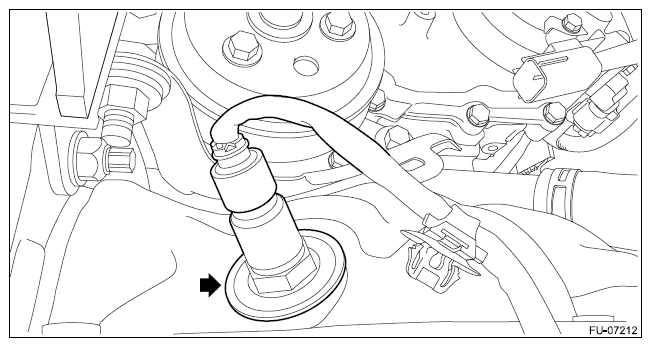

- Remove the front oxygen (A/F) sensor.CAUTION: When removing the front oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
