2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Engine Wiring Harness: Removal
- Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
- Disconnect the ground cable from battery.
- Open the fuel filler lid and remove the fuel filler cap.
- Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .

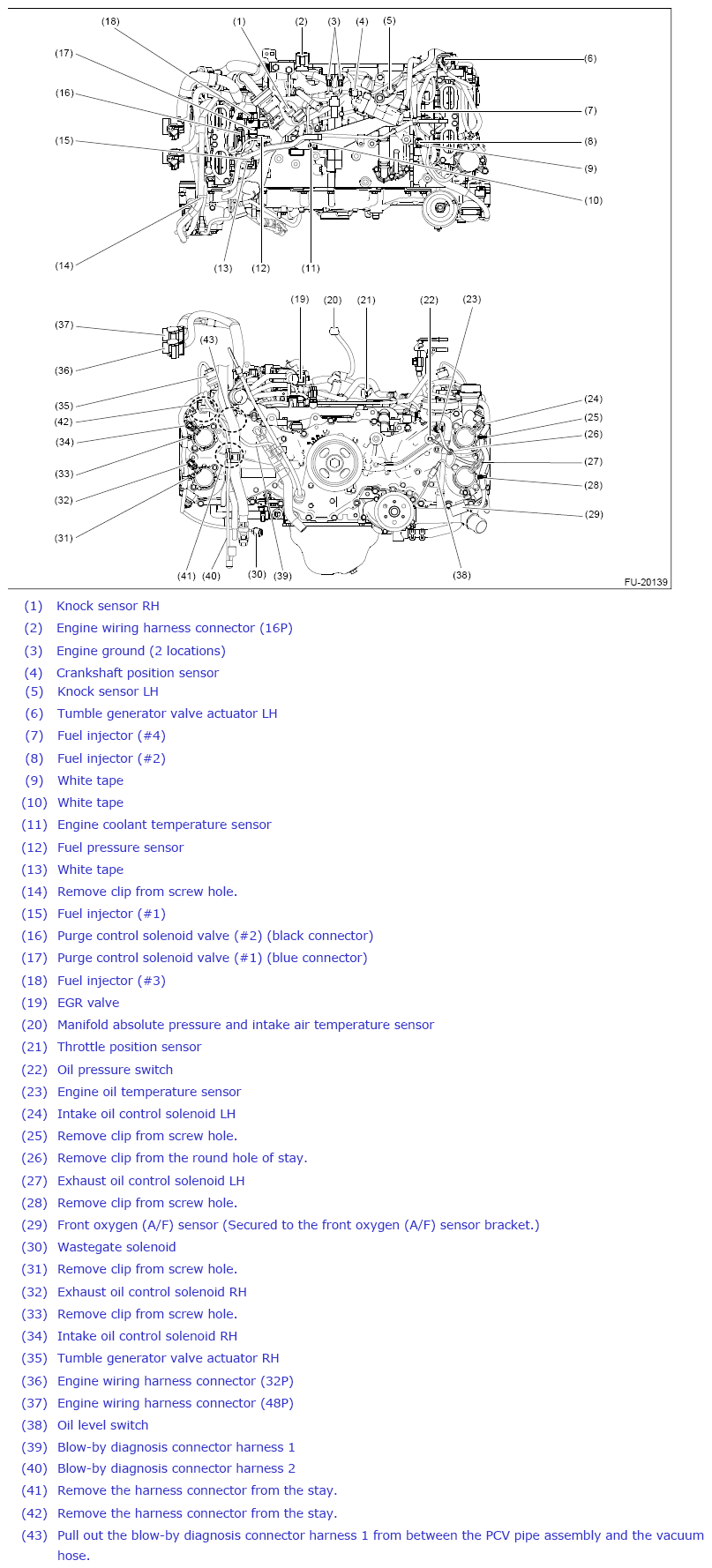

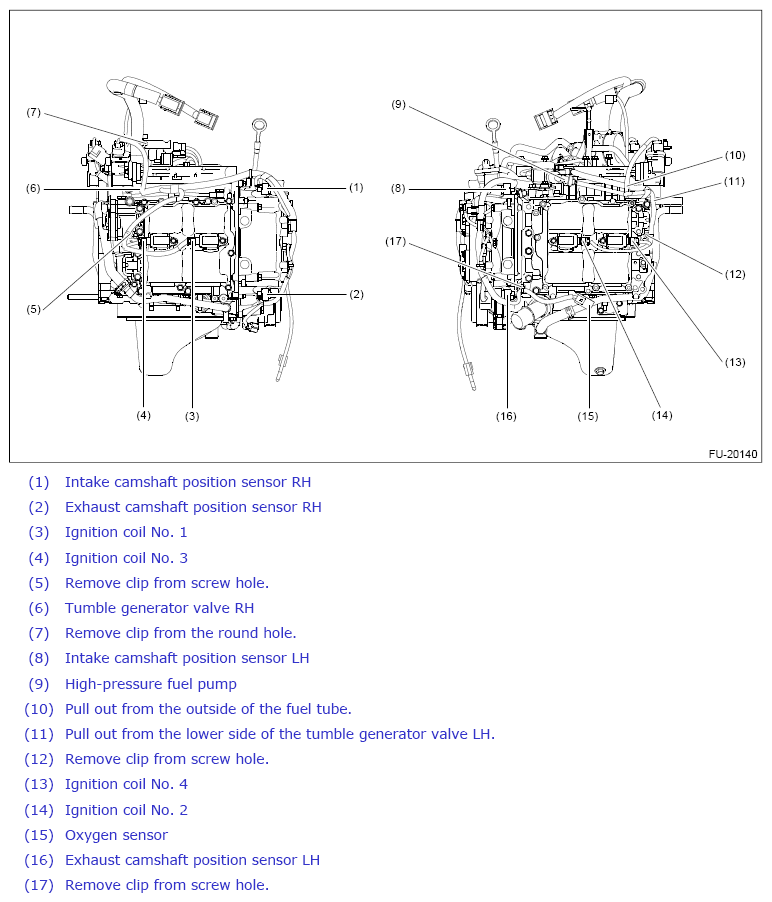

- Disconnect the connector from the engine.

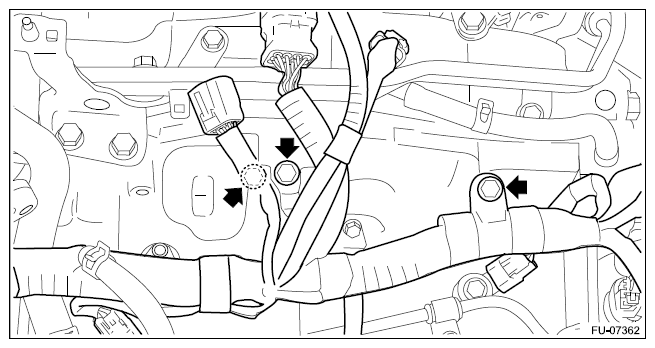

- Remove the engine wiring harness.
