2018 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Indicator Assembly

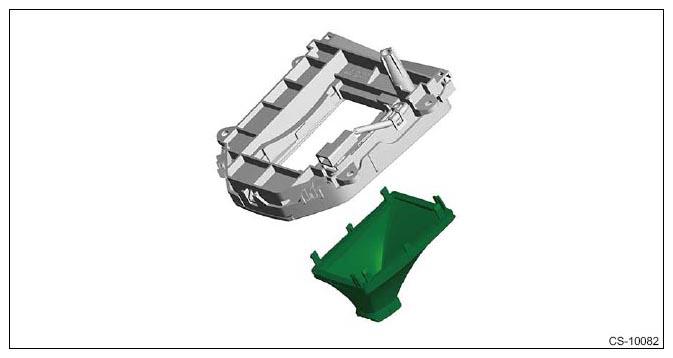

- Disconnect the harness connector from the console front cover assembly, and remove the indicator assembly.

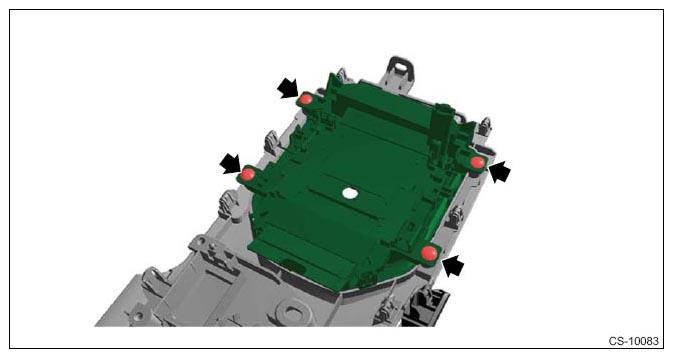

- Remove the housing from the indicator assembly. (Model with gate shifter)

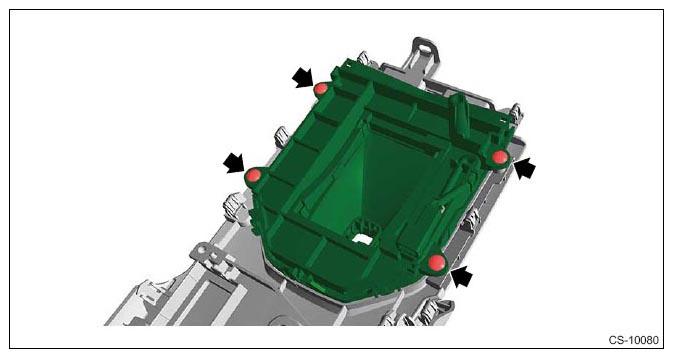

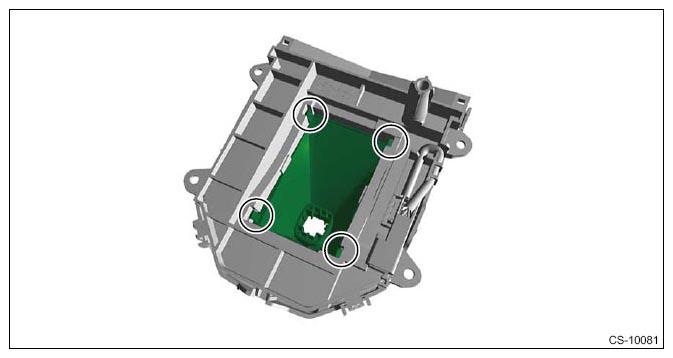

- Remove the boot assembly from the indicator assembly. (Model with boot shifter)CAUTION: When removing the boot assembly, be careful not to damage the boot assembly claws and adjacent parts.

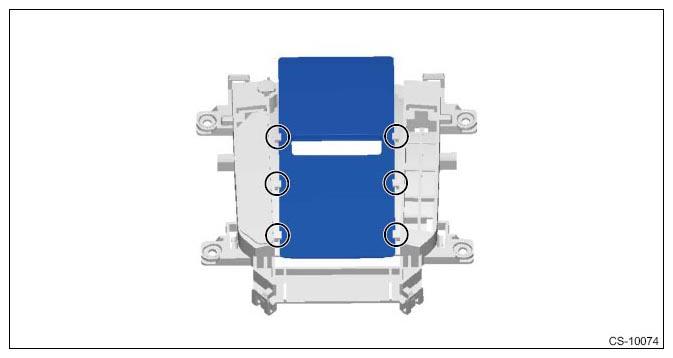

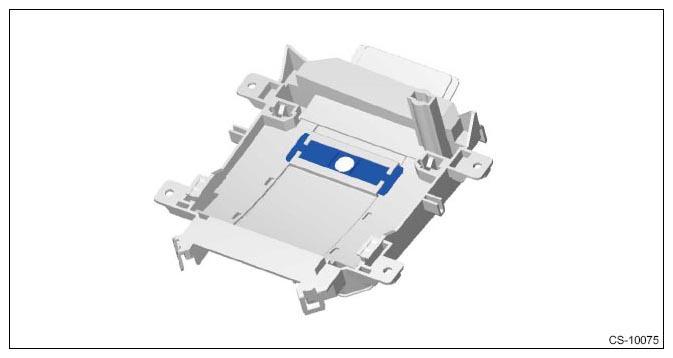

- Remove the blind B. (Model with gate shifter)

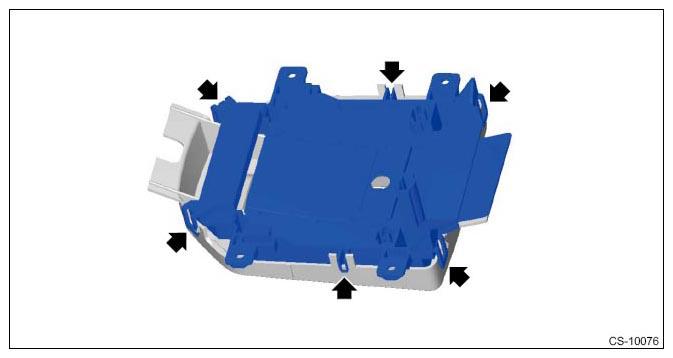

- Remove the blind A from the housing. (Model with gate shifter)
