2018 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

At Select Lever Assembly

  1. Clean all the parts before assembly.
  2. Apply Multitemp D No. 2 or equivalent to the sliding portion of each part.
  3. Install the rod detent and detent spring to the select lever COMPL.
  4. Install the plate guide to the select lever COMPL.
  5. Install the arm assembly.
  6. Install the select lever COMPL to the plate COMPL.
  7. Install the spacer pin.
  8. Install the clamp pin.
  9. Install the spacer pin guide.

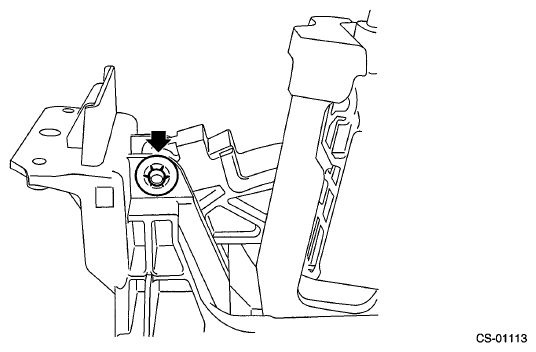

  10. Install the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G06651733Courtesy of SUBARU OF AMERICA, INC.

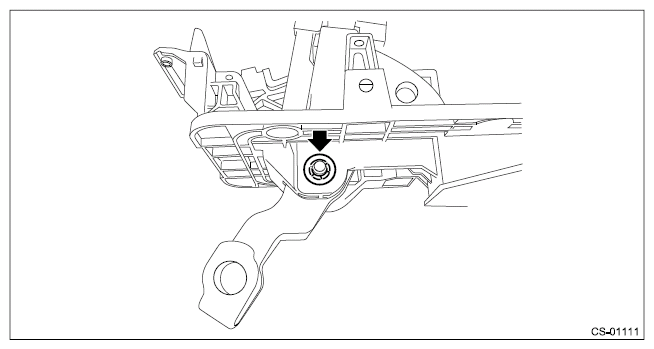

  11. Install the shaft control.
  12. Install the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G12392834Courtesy of SUBARU OF AMERICA, INC.

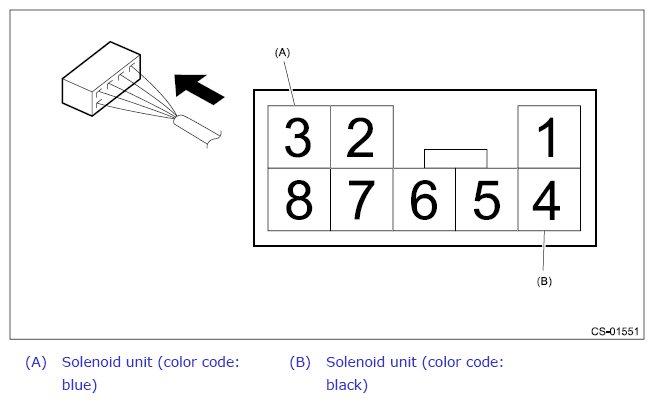

  13. Insert the solenoid unit terminals to the harness connector.
    G12392835Courtesy of SUBARU OF AMERICA, INC.
  14. Install the solenoid unit.
  15. Install the harness to the plate COMPL.
  16. Install the harness connector to the plate COMPL.
  17. Install the gasket.
  18. Install the spacer plate.
  19. After installation, check the following points.
    • The select indicator matches the select lever position when the select lever is changed from "P" range to "D" range.
    • The select lever position and the position mark match each other.
    • Operating force to move the select lever from "P" to "D" range
