2018 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Shift the select lever to "N" range.
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Lift up the vehicle.
- Remove the center exhaust cover.

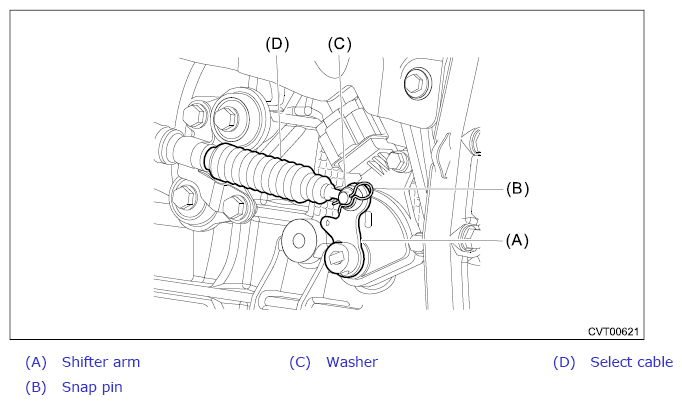

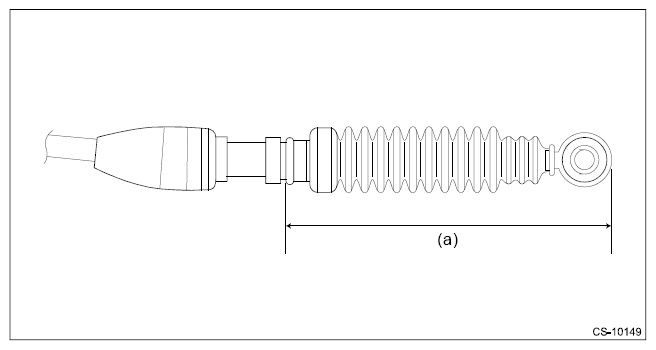

- Remove the snap pin and washer from the shifter arm.CAUTION: Do not apply excessive load while holding the part (a).

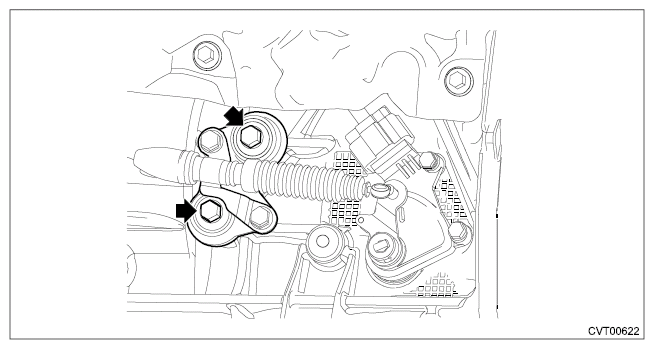

- Remove the plate assembly from the transmission case.

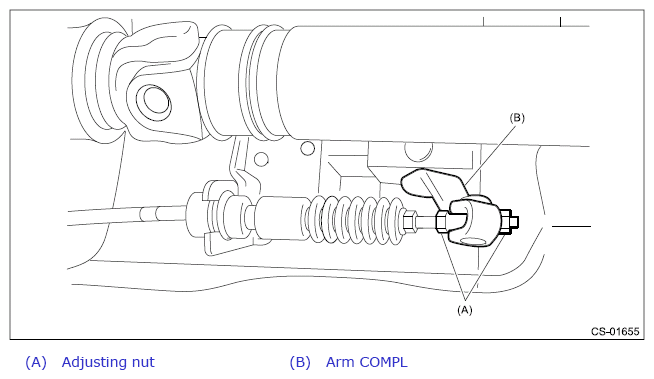

- Disconnect the cable from arm COMPL.CAUTION: Do not apply excessive load while holding the part (a).

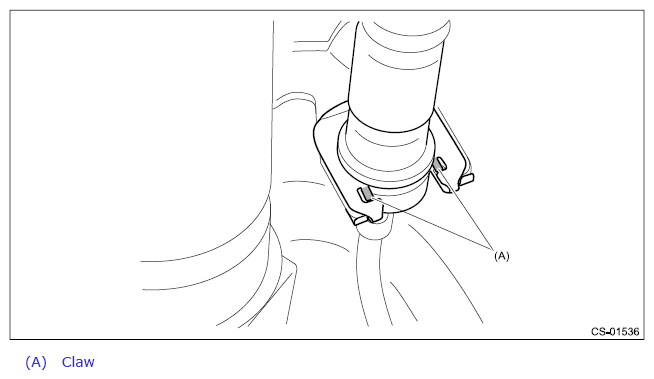

- Raise the claw of clamp to remove the cable from bracket.
- Remove the select cable from plate assembly.
