2018 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
- Remove the clip from the air intake boot, and loosen the clamp.
- Remove the air intake boot, and place it aside so that it does not interfere with the work.CAUTION: Be careful not to pull out the PCV hose.

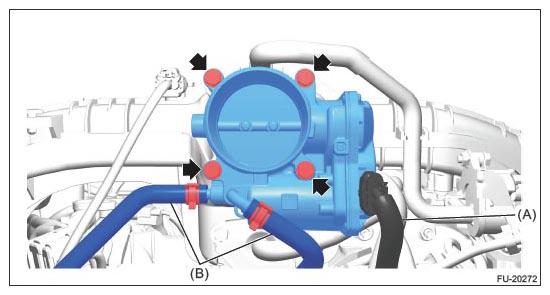

- Disconnect the connectors (A) from the throttle position sensor.
- Disconnect the preheater hose (B) from the throttle body.
- Remove the throttle body from the intake manifold assembly.
