2018 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Fuel Delivery Pipe
- Using a new gasket, install the fuel delivery pipe B to the high-pressure fuel pump.
Tightening torque:
48 N.m (4.9kgf-m, 35.4ft-lb)

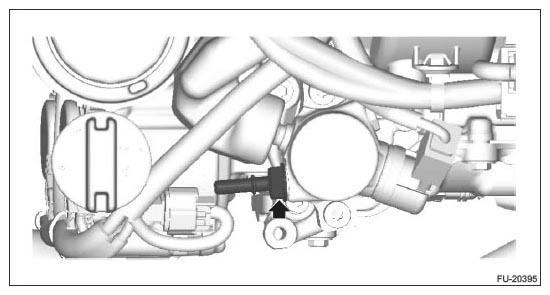

- Connect the fuel delivery pipe A to the high-pressure fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .
- Install the fuel pipe protector.
Tightening torque:
19 N.m (1.9kgf-m, 14.0ft-lb)
- Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>Battery>INSTALLATION .
