2018 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Fuel Filler Pipe: Installation

  1. Open the fuel filler lid.
  2. Insert the fuel filler pipe assembly into the ring clip from inside of the rear fender.
  3. Install the nuts securing the fuel filler pipe assembly.

    Tightening torque:

    7.5N.m (0.8kgf-m, 5.5ft-lb)

    G11252942Courtesy of SUBARU OF AMERICA, INC.
  4. Install the bolts securing the fuel filler pipe assembly.
  5. Install the drain tube to clip (D).

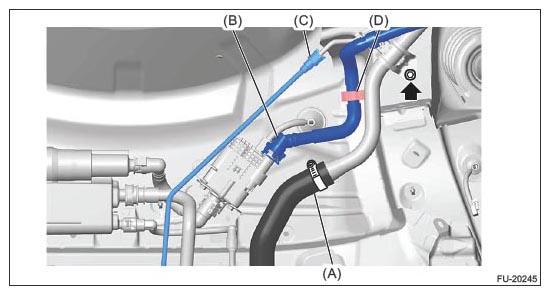

  6. Connect the fuel filler hose (A), drain tube (B) and circulate tube (C) to the fuel filler pipe assembly.

    Fuel filler hose:

    Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>FUEL FILLER HOSE CONNECTION .

    Drain tube:

    Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE E) .

    Circulate tube:

    Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .

    G11252941Courtesy of SUBARU OF AMERICA, INC.
  7. Install the rear mud guard RH. Ref. to EXTERIOR/INTERIOR TRIM>Mud Guard>INSTALLATION .
  8. Install the rear sub frame assembly. Ref. to REAR SUSPENSION>Sub Frame>INSTALLATION .
  9. Install the fuel filler pipe protector.
  10. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
