2018 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Unit Inspection
- Inspection of intake air flow meter SUB-ASSY

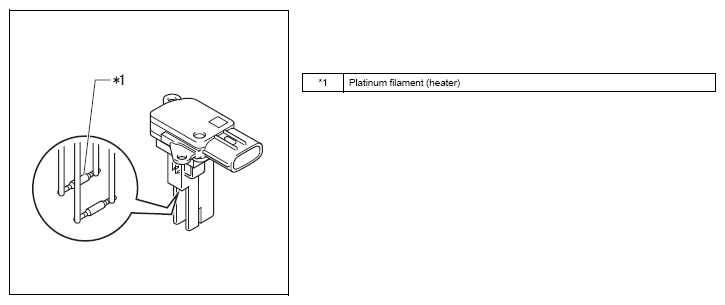

- Use a working lamp, visually check the platinum filament (heater) portion of the intake air flow meter SUB-ASSY for foreign matter.
Criteria: No foreign matter
NOTE: If there is a foreign matter on the platinum filament (heater), replace the intake air flow meter SUB-ASSY. - Inspection of intake temperature sensor resistance

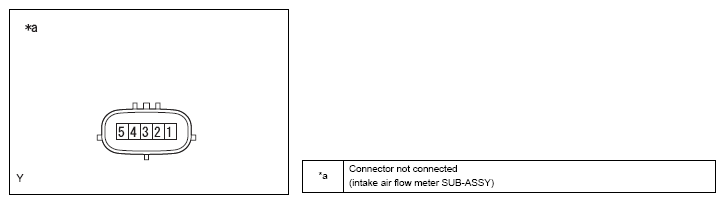

- Measure the resistance between the terminals.
- Use a working lamp, visually check the platinum filament (heater) portion of the intake air flow meter SUB-ASSY for foreign matter.
STANDARD VALUE RESISTANCE SPECIFICATION
| Inspection terminals | Inspection conditions | Standard value |
|---|---|---|
| 1 - 2 | -20°C {-4°F} | 13.6 to 18.4k Ω |
| 20°C {68°F} | 2.21 to 2.69k Ω | |
| 60°C {140°F} | 0.49 to 0.67k Ω |
