2018 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

Unit Inspection

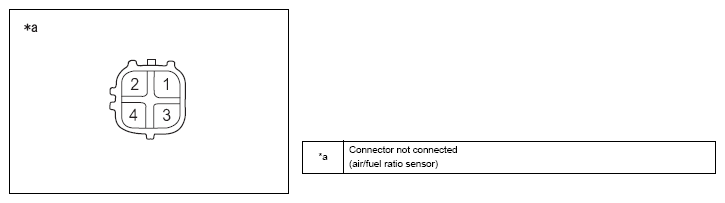

G12586461Courtesy of SUBARU OF AMERICA, INC.
  1. Inspection of air/fuel ratio sensor
    1. Measure the resistance between the terminals.
STANDARD VALUE RESISTANCE SPECIFICATION

Inspection terminals Inspection conditions Standard value
1 - 2 20Β°C {68Β°F} 1.98 to 2.64 Ξ©
1 - 4 Always 10 k Ξ© or more
