2017 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE

Communication For Initializing Impossible

DIAGNOSIS:

Open or short circuit in data link connector

TROUBLE SYMPTOM:

Subaru Select Monitor communication failure

WIRING DIAGRAM:

Engine Electrical System <Ref. to WIRING DIAGRAM , Engine Electrical System.>

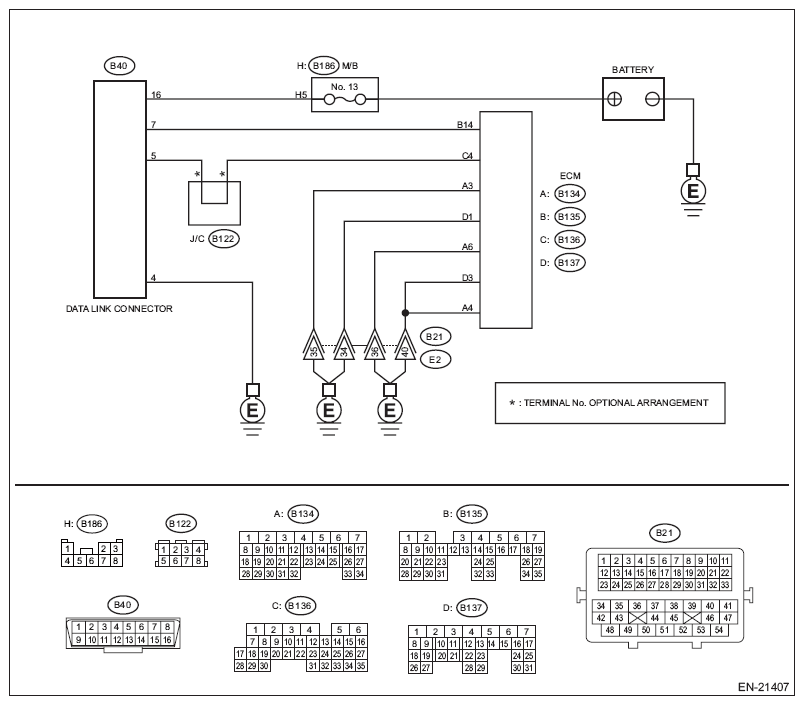

Fig 1: Data Link Connector Circuit Diagram
G11574205Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK POWER SUPPLY CIRCUIT.
Connect DST-i or a general scan tool to the data link connector.		 Is the DST-i or the general scan tool turned to ON? Go to step 4.  Go to step 2.
2 CHECK POWER SUPPLY CIRCUIT.
Measure the voltage between data link connector and chassis ground.
Connector & terminal
(B40) No. 16 (+) - Chassis ground (-): 		 Is the voltage 10 V or more? Go to step 3.  Repair the power supply circuit.
NOTE: In this case, repair the following item:
  • Open or ground short circuit of harness between battery and data link connector
  • Blown out of fuse (M/B No. 13)
3 CHECK HARNESS BETWEEN DATA LINK CONNECTOR AND CHASSIS GROUND.
  1. Turn the ignition switch to OFF.
  2. Measure the resistance of harness between data link connector and chassis ground.

    Connector & terminal

    (B40) No. 4 - Chassis ground:

    (B40) No. 5 - Chassis ground:

 Is the resistance less than 5 Ω? Repair the poor contact of data link connector. Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit in harness between ECM connector and data link connector
  • Open circuit of harness between ECM connector and engine ground
  • Poor contact of ECM connector
  • Poor contact of joint connector
4 CHECK HARNESS BETWEEN ECM AND DATA LINK CONNECTOR.
  1. Disconnect the connectors from ECM, DCCD CM, VDC CM, airbag CM, impact sensor, TPMS & keyless entry CM, and body integrated unit.
    CAUTION: When disconnecting the connector from airbag CM, always follow the precautions on AB section. <Ref. to CAUTION , General Description.>
  2. Measure the resistance of harness between ECM connector and data link connector.

    Connector & terminal

    (B135) No. 14 - (B40) No. 7:

 Is the resistance less than 1 Ω? Go to step 5.  Repair the open circuit of harness between ECM connector and data link connector.
5 CHECK HARNESS BETWEEN ECM AND DATA LINK CONNECTOR.
Measure the resistance between data link connector and chassis ground.
Connector & terminal
(B40) No. 7 - Chassis ground: 		 Is the resistance 1 MΩ or more? Repair the poor contact of ECM connector or data link connector. Repair the short circuit to ground in harness between ECM connector and data link connector.
