2017 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE
LH Side
- Remove the battery. <Ref. to REMOVAL , Battery.>
- Remove the secondary air pump. <Ref. to REMOVAL , Secondary Air Pump.>

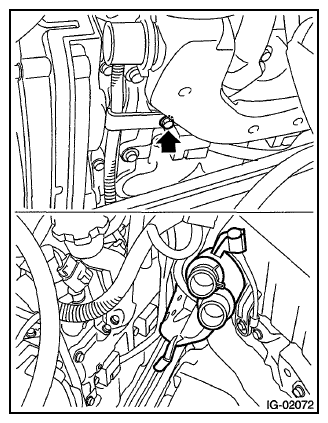

- Remove the bolts that secure the air duct to the rocker cover LH, and lift the air duct.
- Disconnect the connector from ignition coil.CAUTION: Be careful not to damage the claw (a) of the connector.
