2017 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE

Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Remove the glove box. <Ref. to REMOVAL , Glove Box.>
Turn the ignition switch to ON. (engine OFF)

Measure the voltage between ECM connector terminals.

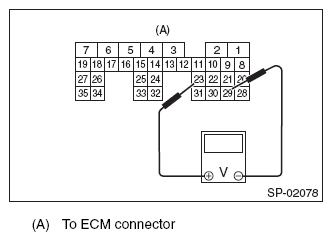

Main sensor side

Fig 1: Checking Accelerator Pedal Sensor Area Connector - Main Sensor Side
Courtesy of SUBARU OF AMERICA, INC.

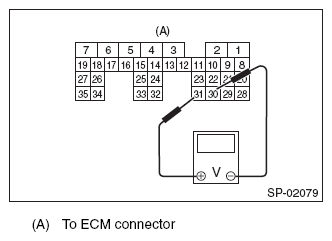

Sub sensor side

Fig 2: Checking Accelerator Pedal Sensor Connector - Sub Sensor Side

Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (full closed)	23 (+) and 29 (-)	0.4 - 1.0 V
Main	Depressed (full opened)	23 (+) and 29 (-)	2.4 - 3.7 V
Sub	Not depressed (full closed)	31 (+) and 30 (-)	0.3 - 1.1 V
Sub	Depressed (full opened)	31 (+) and 30 (-)	2.3 - 3.8 V

After inspection, install the related parts in the reverse order of removal.
