2017 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE

Pulsation Damper Assembly: Assembly

Install the fuel pipe gasket and pulsation damper to the fuel by-pass pipe.

NOTE: Use a new fuel pipe gasket.

Tightening torque:

21.6 N.m (2.2 kgf-m, 15.9 ft-lb)

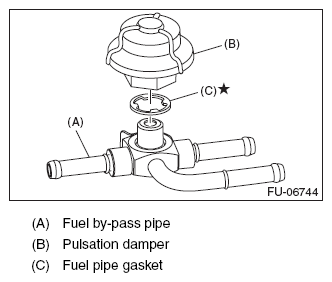

Fig 1: Installing Fuel Pipe Gasket And Pulsation Damper To Fuel By-Pass Pipe

Courtesy of SUBARU OF AMERICA, INC.
