2017 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE
Pressure Regulator & Damper Assembly: Disassembly

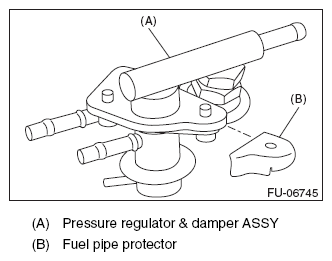

- Remove the fuel pipe protector from the pressure regulator and damper assembly.

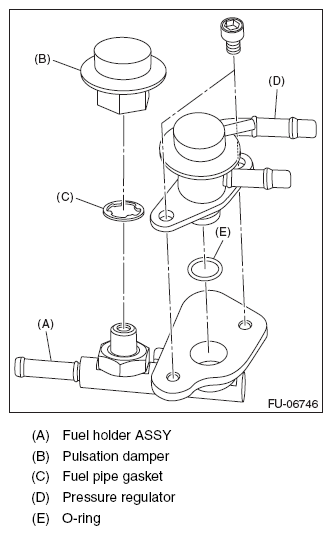

- Remove the pulsation damper and fuel pipe gasket from the fuel holder assembly, and remove the pressure regulator from the fuel holder assembly.
