2017 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
At Select Lever Assembly
WARNING: This page is about a different variant/trim than selected.
- Remove the spacer plate.
- Remove the gasket.
- Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector.
- Remove the harness.
- Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

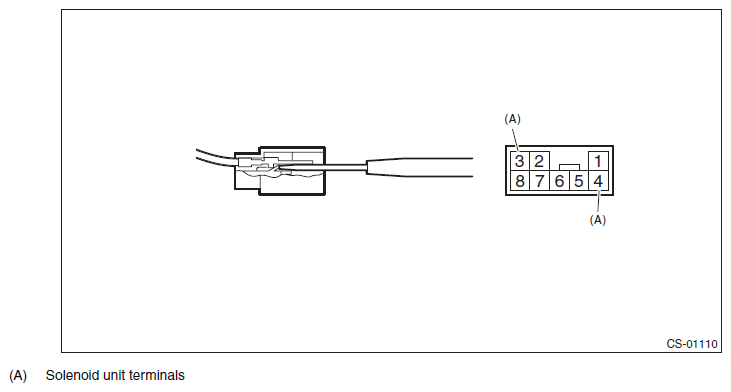

- Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.
- Remove the clamp push nut.NOTE: Replace the clamp push nut with a new part.
