Select Cable: Adjustment
- Shift the select lever to "N" range.
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
- Remove the center exhaust cover.

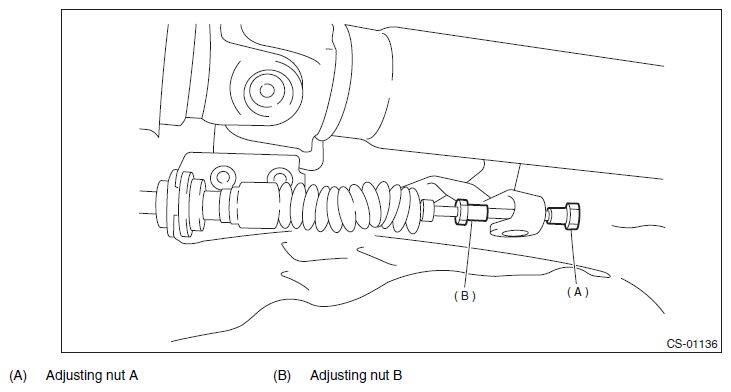

- Loosen the adjusting nuts on both sides.

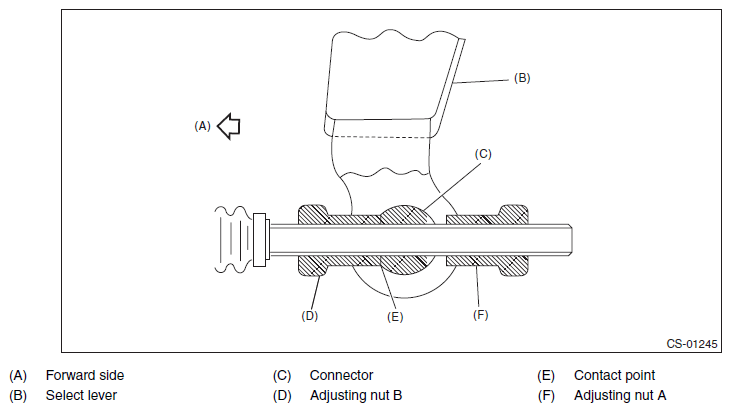

- Turn adjusting nut B until it lightly touches the connector.

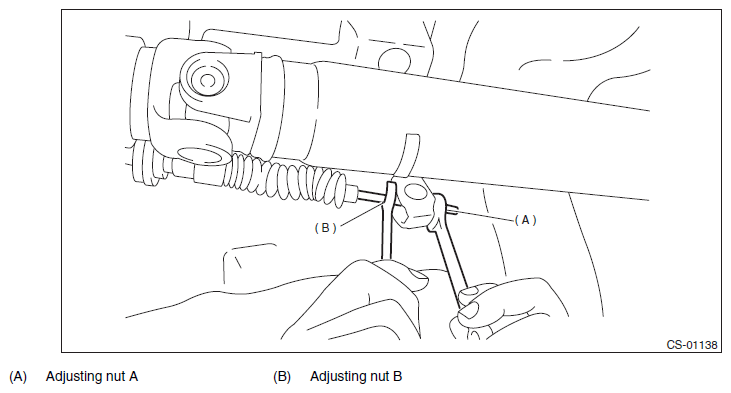

- Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:
7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
- After the completion of adjustment, confirm that the select lever operates normally at all ranges.
- Installing procedure hereafter is in the reverse order of removal.
