2017 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Section 30 (Engine Intake System (Induction)): Intercooler: Removal
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the bolts which secure the intercooler, and remove the intercooler stay RH from the intake manifold assembly.
- Release the lock of spring (A) of intake duct No. 2, and remove the intercooler and the intake duct No. 3 as a single unit.NOTE:

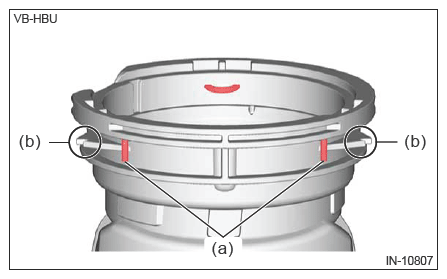

Move the both ends (a) of the spring to the cutouts (b) of the intake duct No. 2 using a flat tip screwdriver wrapped with protection tape.
- Remove the bolt securing the vacuum pipe assembly stay to the intercooler stay LH. (MT model)
- Remove the intercooler stay LH from the intake manifold assembly.
