Air Intake Boot: Removal
- Disconnect the turbo duct from the air cleaner case (rear).
- Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
- Disconnect the air intake boot from the intake duct No. 1.

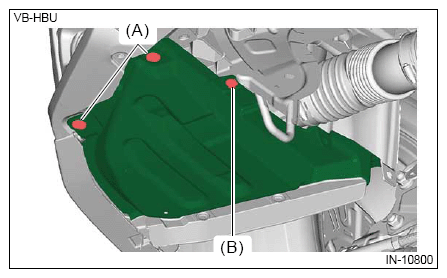

- Remove the clips (A) and screw (B), and turn over the mud guard front RH.
- Remove the nut, and remove the turbo duct and the air intake boot as a single unit.
- Disconnect the turbo duct and the air intake boot.NOTE:
Perform this procedure only when required.
- Remove the cushion from the turbo duct bracket, and remove the turbo duct bracket.NOTE:
Perform this procedure only when required.
