2017 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

WASTEGATE Control Solenoid Valve

Check that the wastegate control solenoid valve has no deformation, cracks or other damages.

Check the resistance between the wastegate control solenoid valve terminals.

Fig 1: Measuring Resistance Between Knock Sensor Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Standard
1 and 2	24±3 Ω (when 20°C (68°F))

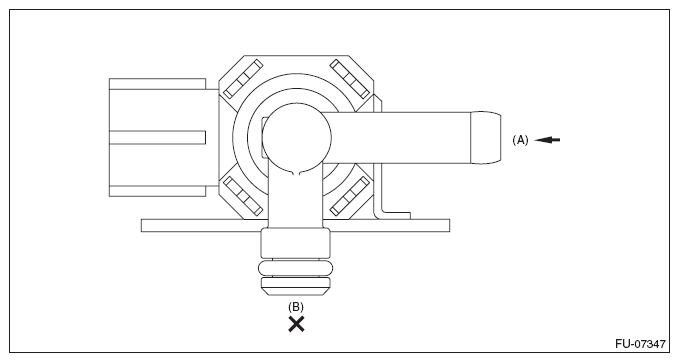

Check that air does not come out from (B) when air is blown into (A).

Fig 2: Checking Air Blown System
Courtesy of SUBARU OF AMERICA, INC.

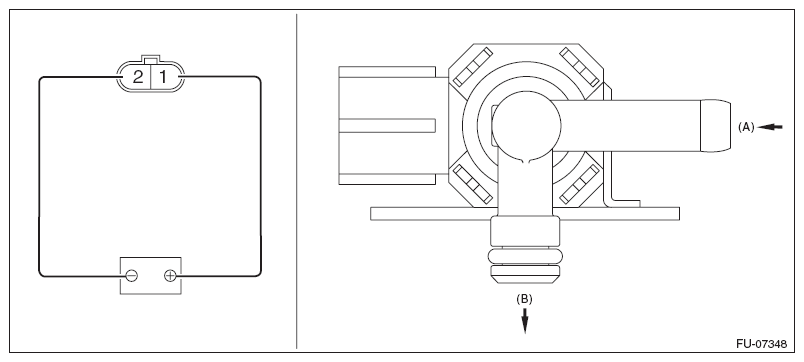

Connect the battery positive terminal to the terminal No. 1 and the battery negative terminal to the terminal No. 2. Check that air is discharged from (B), when supplying air to (A).

Fig 3: Connecting Battery Positive Terminal To Terminal No. 1 And Battery Negative Terminal To Terminal No. 2

Courtesy of SUBARU OF AMERICA, INC.
