2017 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Check Manifold Temperature Sensor Unit

Measure the resistance between engine coolant temperature sensor terminals.

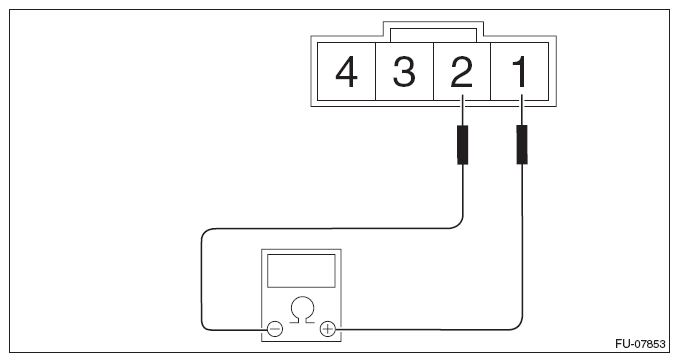

Fig 1: Measuring Resistance Between Engine Coolant Temperature Sensor Terminals

Courtesy of SUBARU OF AMERICA, INC.

Temperature	Terminal No.	Standard
-20°C (-4°F)	1 and 2	Approx. 14.7±2.2 kΩ
25°C (77°F)		Approx. 2.0±0.2 kΩ
60°C (140°F)		Approx. 0.59±0.09 kΩ
