High-Pressure Fuel Pump Case
- Apply liquid gasket to the mating surfaces of fuel pump case, and install the high-pressure fuel pump case.NOTE:
- Clean the mating surface of the high-pressure fuel pump case and cam carrier assembly LH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

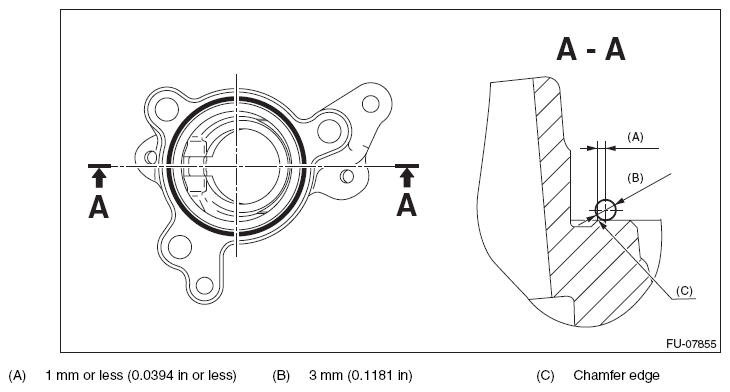

Liquid gasket applying diameter:
3±1 mm (0.1181±0.0394 in)

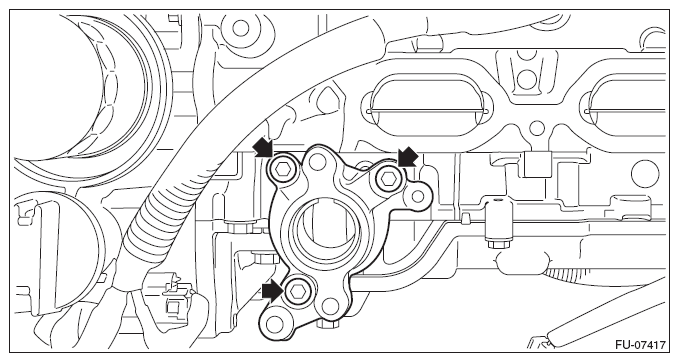

- Install the high-pressure fuel pump case to the cam carrier assembly LH.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)

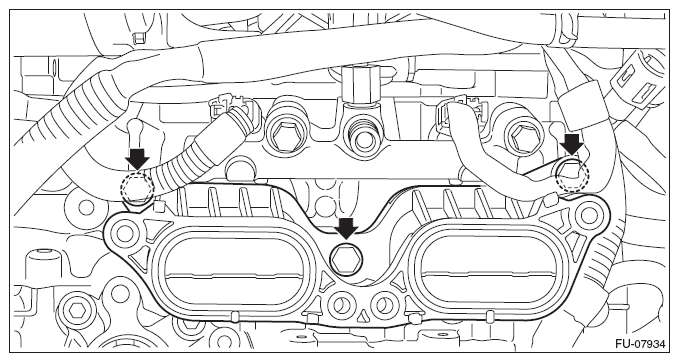

- Install the air intake adapter LH to cylinder heads.NOTE: Use a new gasket.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the high-pressure fuel pump. <Ref. to HIGH-PRESSURE FUEL PUMP , INSTALLATION, High Pressure Fuel Pump.>
