RH Side

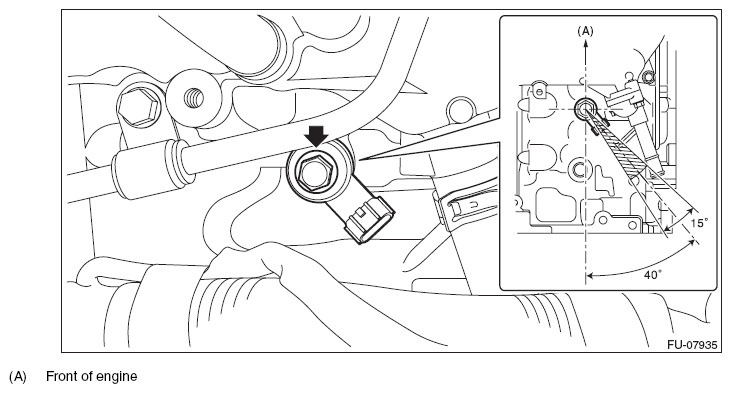

- Install the knock sensor to the cylinder block.NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 32.5 - 47.5° angle relative to the rear of engine.
Tightening torque:
24 N.m (2.4 kgf-m, 17.7 ft-lb)

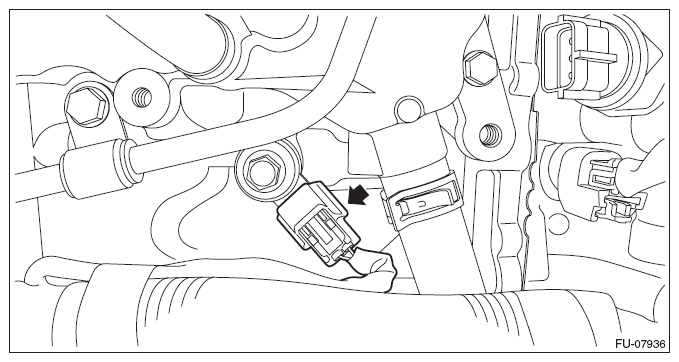

- Connect the connector to the knock sensor.
- Install the fuel pipe insulator No. 3. <Ref. to FUEL PIPE INSULATOR NO. 3 , INSTALLATION, Fuel Insulator.>
- Install the intake manifold. <Ref. to INSTALLATION , Intake Manifold.>
- Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
- Install the collector cover. <Ref. to INSTALLATION , Collector Cover.>
