LH Side

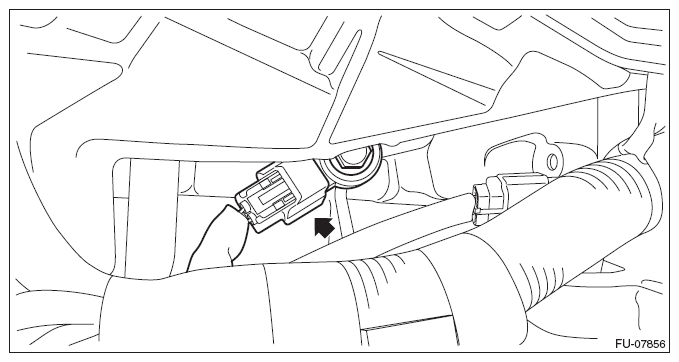

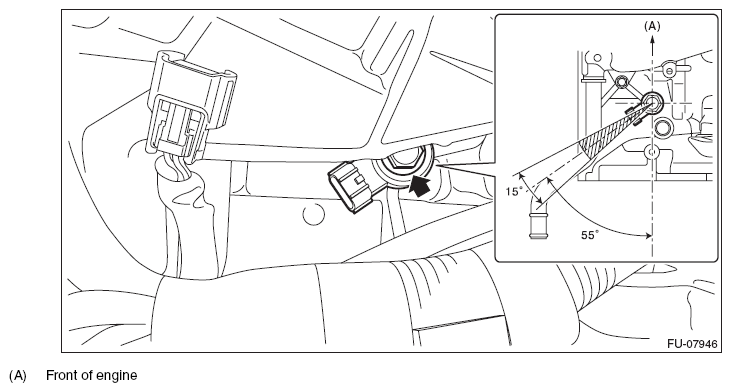

- Install the knock sensor to the cylinder block.NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 47.5 - 62.5° angle relative to the rear of engine.
Tightening torque:
24 N.m (2.4 kgf-m, 17.7 ft-lb)
- Connect the connector to the knock sensor.
- Install the bolts securing the engine harness.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the throttle body. <Ref. to INSTALLATION , Throttle Body.>
- Install the intercooler. <Ref. to INSTALLATION , Intercooler.>
- Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
- Install the collector cover. <Ref. to INSTALLATION , Collector Cover.>
