2017 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE

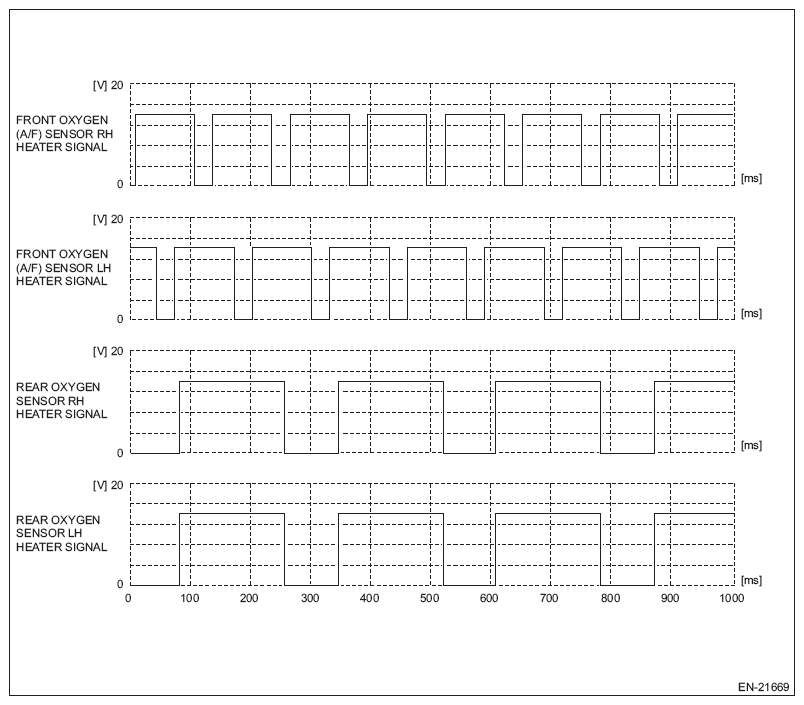

Waveform 4
WARNING: This page is about a different variant/trim than selected.
| Measured terminal | Front oxygen (A/F) sensor RH heater signal (E158) No. 5 (+) - Engine ground 3 (E158) No. 63: |
| Front oxygen (A/F) sensor LH heater signal (E158) No. 4 (+) - Engine ground 3 (E158) No. 63: | |
| Rear oxygen sensor RH heater signal (E158) No. 10 (+) - Engine ground 3 (E158) No. 63: | |
| Rear oxygen sensor LH heater signal (E158) No. 11 (+) - Engine ground 3 (E158) No. 63: | |
| Measuring condition | While engine idling |
