2017 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE

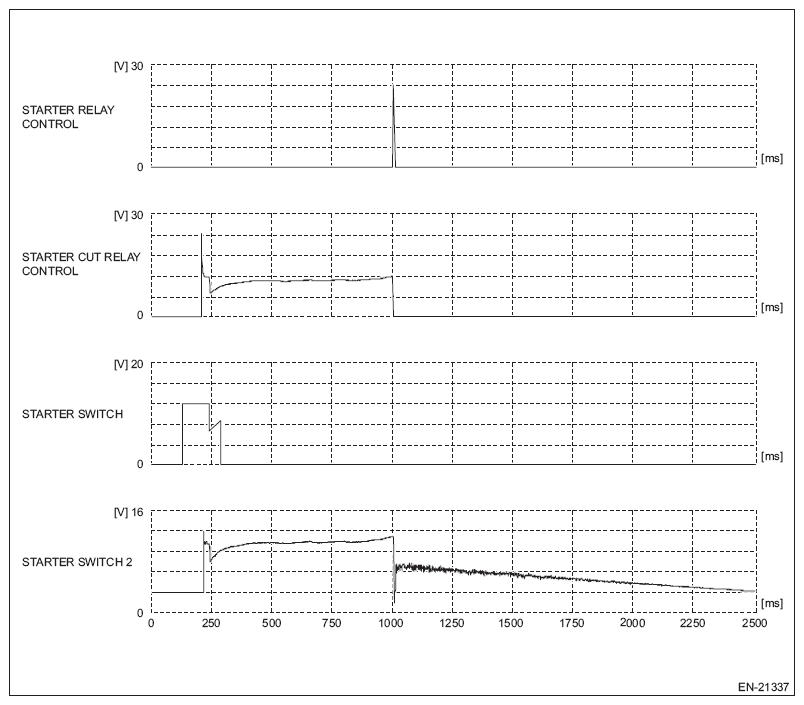

Waveform 12
WARNING: This page is about a different variant/trim than selected.
| Measured terminal | Starter relay control (B134) No. 62 (+) - Engine ground 3 (E158) No. 63: |
| Starter cut relay control (B134) No. 49 (+) - Engine ground 3 (E158) No. 63: | |
| Starter switch (B134) No. 46 (+) - Engine ground 3 (E158) No. 63: | |
| Starter switch 2 (B134) No. 58 (+) - Engine ground 3 (E158) No. 63: | |
| Measuring condition | Engine starting status |
