2017 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE

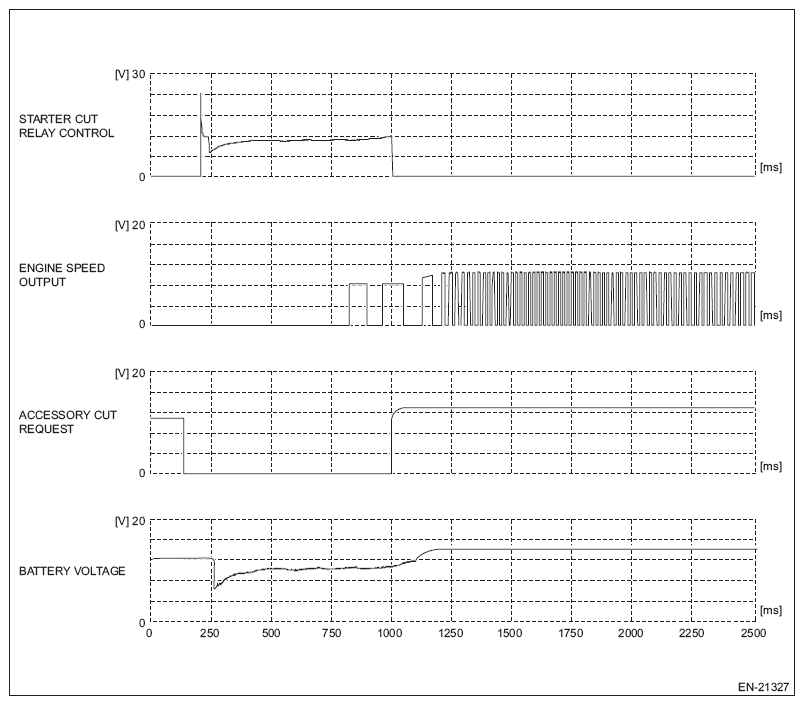

Waveform 13
| Measured terminal | Starter cut relay control (B134) No. 49 (+) - Engine ground 3 (E158) No. 63 (-): |
| Engine speed output (B134) No. 10 (+) - Engine ground 3 (E158) No. 63 (-): | |
| Accessory cut request (B134) No. 64 (+) - Engine ground 3 (E158) No. 63 (-): | |
| Battery voltage (battery terminal) (+) - Engine ground 3 (E158) No. 63 (-): | |
| Measuring condition | When engine is started |
