2017 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE

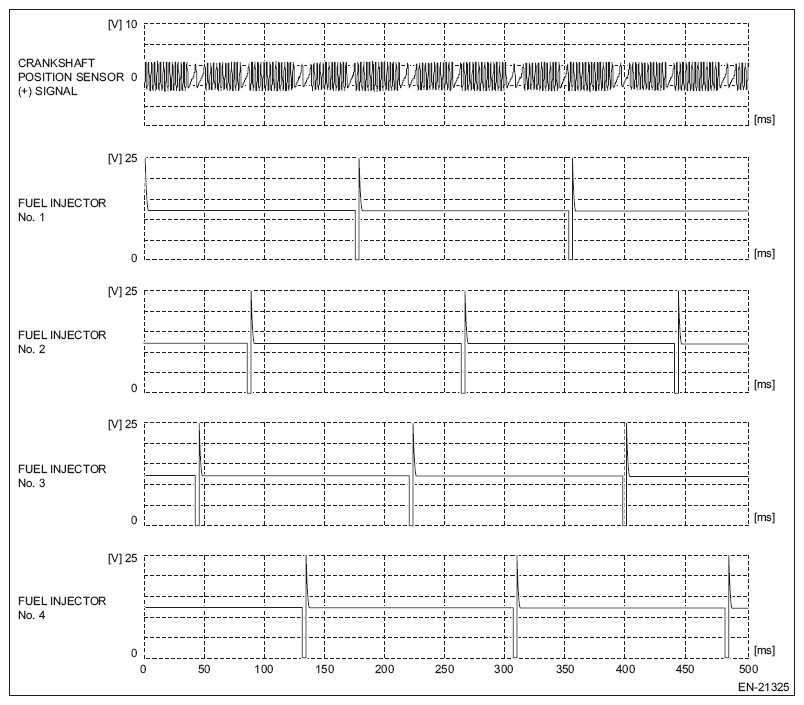

Waveform 11
| Measured terminal | Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63 (-): |
| Fuel injector #1 (E158) No. 23 (+) - Engine ground 3 (E158) No. 63 (-): | |
| Fuel injector #2 (E158) No. 8 (+) - Engine ground 3 (E158) No. 63 (-): | |
| Fuel injector #3 (E158) No. 9 (+) - Engine ground 3 (E158) No. 63 (-): | |
| Fuel injector #4 (E158) No. 22 (+) - Engine ground 3 (E158) No. 63 (-): | |
| Measuring condition | While engine idling |
