2017 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Drive Cycle P
| DTC | Item | Condition |
|---|---|---|
| P04F0 | EVAP SYSTEM HIGH PRESSURE PURGE LINE (CPC2) PERFORMANCE | Remaining fuel level 20 L or more |
Diagnostic procedure:
WARNING:
When performing drive cycle P on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

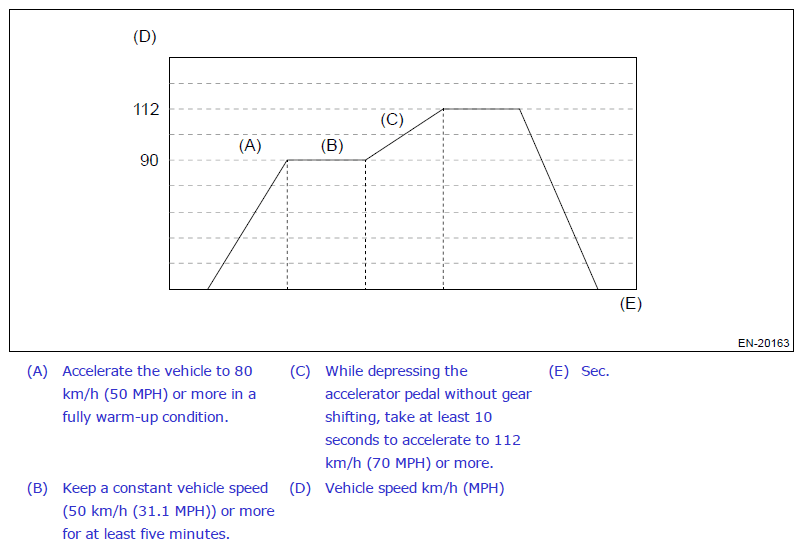

- Drive according to the drive pattern described below.
- Park the vehicle on a safe place.NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
- With the vehicle idling, read the temporary diagnostic code of DTC using Subaru Select Monitor or general scan tool.NOTE:
- Refer to "Read Diagnostic Trouble Code (DTC)" for detailed operation procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Read Diagnostic Trouble Code (DTC) .
- In the step 3), if the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
