2017 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE

Tumble Generator Valve Assembly: Removal

NOTE: The tumble generator valve assembly is tightened together with the intake manifold.

Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
Disconnect the ground cable from battery.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
Remove the air intake adapter from the cylinder head.
- RH side

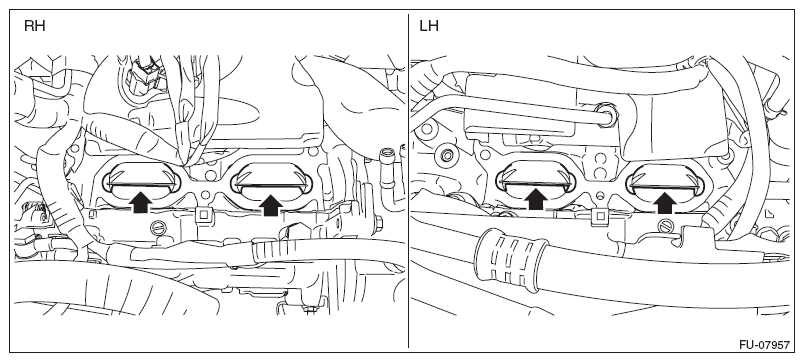

  Fig 1: Locating Air Intake Adapter (RH Side) Bolts
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

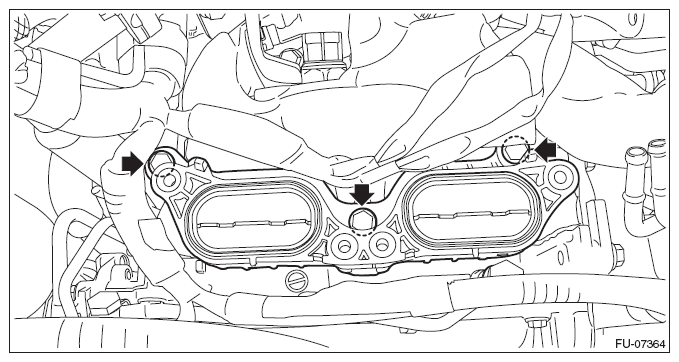

Fig 2: Locating Air Intake Adapter (LH Side) Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the cylinder head plate from cylinder head.

Fig 3: Locating Cylinder Head Plate

Courtesy of SUBARU OF AMERICA, INC.
