2017 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- Remove the collector cover.
- Remove the clip (A).
- Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
- Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
- Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. Ref. to COOLING(H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
- Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
- Remove the intake duct No. 3. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intake Duct>REMOVAL>INTAKE DUCT NO. 3.
- Disconnect the connector (A) from the throttle position sensor, and disconnect the preheater hose (B) from the throttle body.

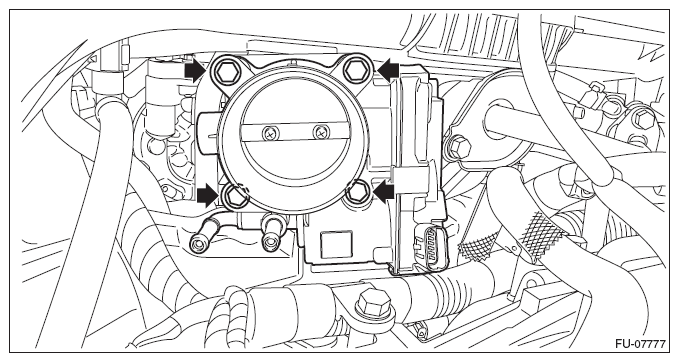

- Remove the throttle body from the intake manifold.
