2017 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Fuel Filler Pipe: Installation
- Open the fuel filler lid.
- Insert the fuel filler pipe assembly into the rubber saucer from inside of the rear fender.

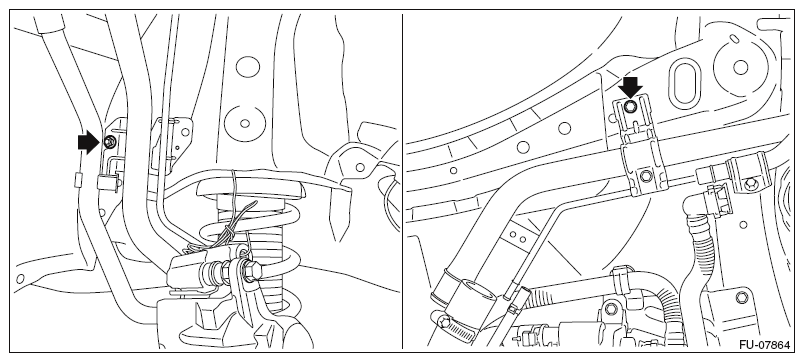

- Install the fuel filler pipe assembly to the vehicle.
Tightening torque:
7.5 N.m (0.8 kg-fm, 5.5 ft-lb)
- Connect the quick connector for drain pipe to the fuel filler pipe assembly.CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
