2017 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor: Removal

Remove the collector cover.
1. Remove the clip (A).
2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
Fig 1: Pulling Collector Cover (RH) And (LH) Side Upward
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.
Drain engine coolant. Ref. to COOLING(H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.

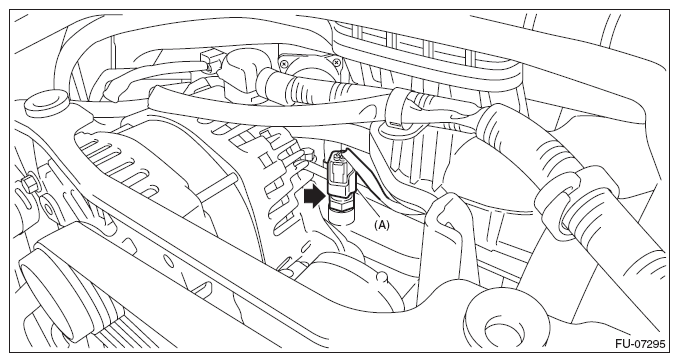

Fig 2: Locating Engine Coolant Temperature Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.
