2017 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Removal

  1. Remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    Fig 1: Pulling Collector Cover (RH) And (LH) Side Upward
    G10403792Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  4. Remove the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Throttle Body>REMOVAL .
  5. Remove the bolts securing the engine harness.
    Fig 2: Locating Engine Harness Bolt
    G09479729Courtesy of SUBARU OF AMERICA, INC.

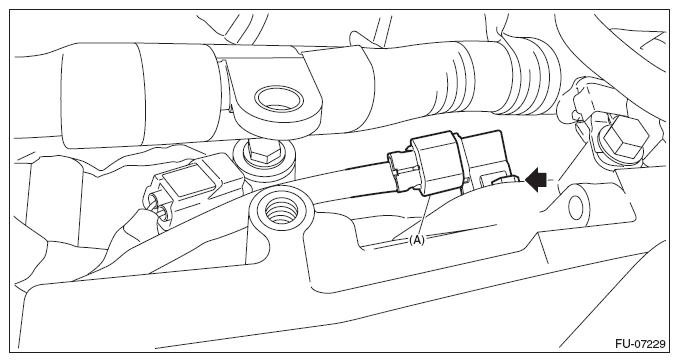

  6. Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.
Fig 3: Locating Crankshaft Position Sensor Bolt
G09479730Courtesy of SUBARU OF AMERICA, INC.
