2017 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Installation

WARNING: This page is about a different variant/trim than selected.

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

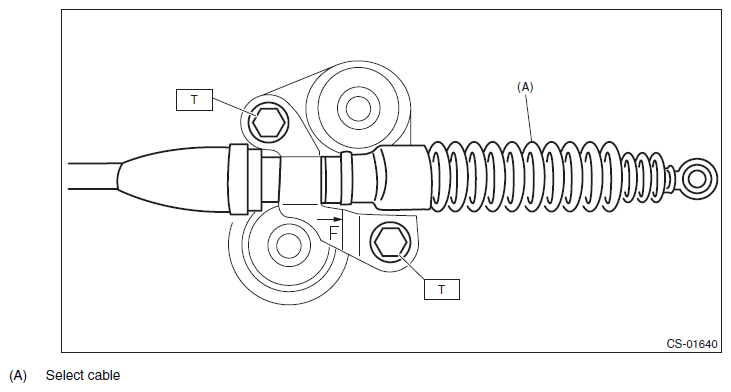

Fig 1: Positioning Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

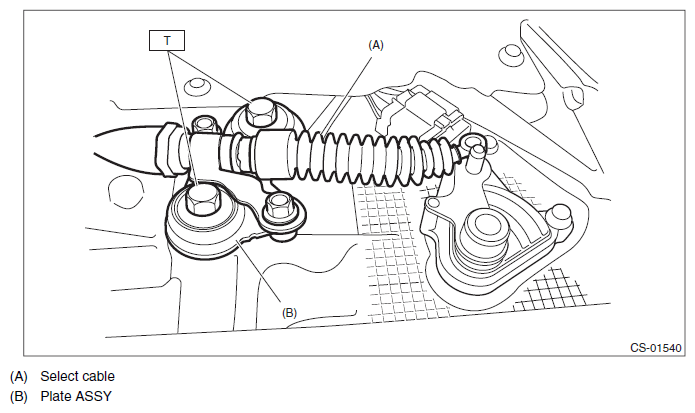

Fig 2: Select Cable And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.
CAUTION: Do not apply extra overload while holding the part (A).
