2017 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Shift the select lever to "N" range.
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe. Ref. to REMOVAL , Center Exhaust Pipe.
  4. Remove the center exhaust cover.
    Fig 1: Center Exhaust Cover Location
    G11270138Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen the adjusting nuts on both sides.

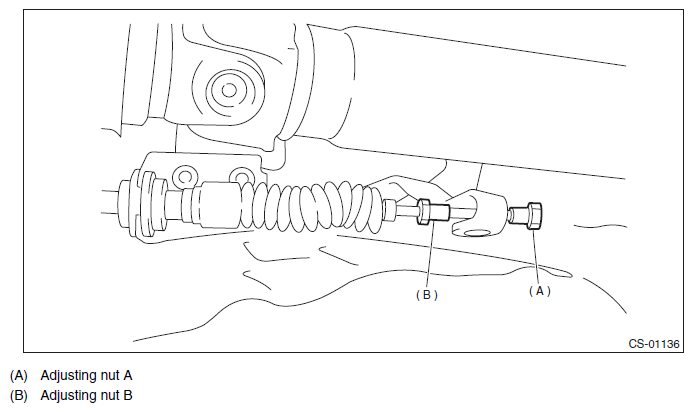

    Fig 2: Adjusting Nuts A And B
    G11568086Courtesy of SUBARU OF AMERICA, INC.
  6. Turn adjusting nut B until it lightly touches the connector.

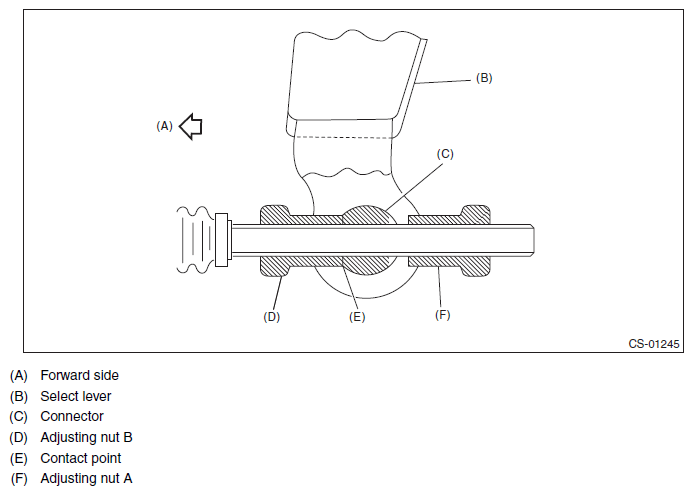

    Fig 3: Turning Adjusting Nut B
    G11568087Courtesy of SUBARU OF AMERICA, INC.
  7. Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    Fig 4: Installing Spanner Wrench To Adjusting Nut B
    G11568088Courtesy of SUBARU OF AMERICA, INC.
  8. After the completion of adjustment, confirm that the select lever operates normally at all ranges.
  9. Install in the reverse order of removal.
