2017 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor (Method With Oscilloscope)
- Prepare an oscilloscope.
- Remove the glove box. Ref. to REMOVAL , Glove Box.

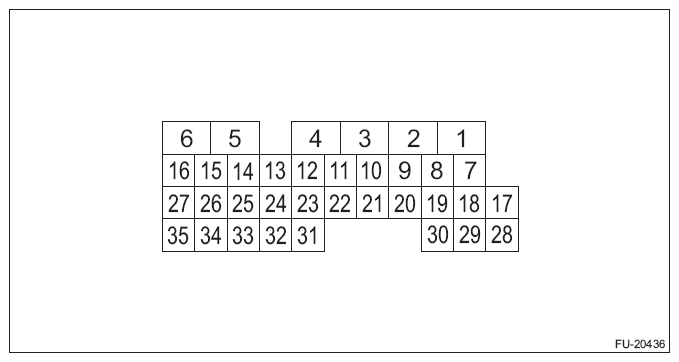

- Connect the probe to ECM connector.
- Intake camshaft position sensor
- Exhaust camshaft position sensor
Camshaft position sensor Terminal No. Probe Intake RH 26 + LH 15 + Exhaust RH 14 + LH 25 + RH and LH 3 - - Start the engine and let it idle.
- Check the waveforms and voltage.NOTE: For waveform and voltage, refer to "Engine Control Module (ECM) I/O Signal". Ref. to ELECTRICAL SPECIFICATION , Engine Control Module (ECM) I/O Signal.
- After inspection, install the related parts in the reverse order of removal.
