2017 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Oxygen sensor (FA20): Removal
- Disconnection of the battery ground terminal (Refer to Working precautions and notes )
- Removal of front tire RH
- Removal of under cover front AL (Refer to Removal )
- Disconnection of under cover front side RH

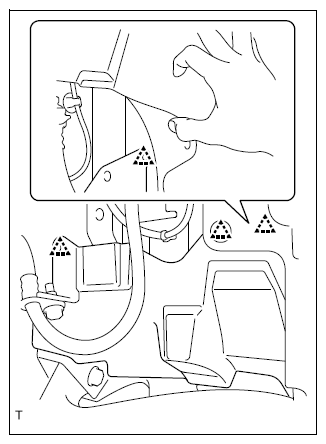

- Remove 3 clips, and disconnect the under cover front side RH.
- Removal of oxygen sensor

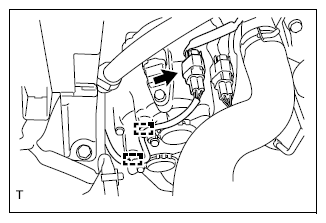

- Disconnect the connector for oxygen sensor and the 2 clamps.

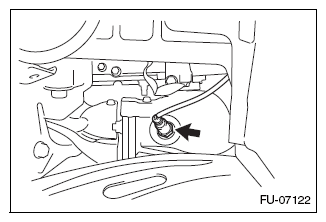

- Remove the oxygen sensor from the exhaust manifold.
