2017 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Unit inspection

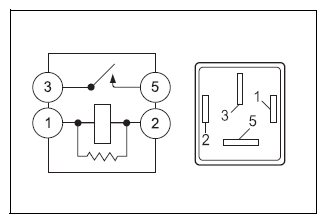

- Inspection of IG2 relay (IG2)
- Measure the resistance between the terminals.

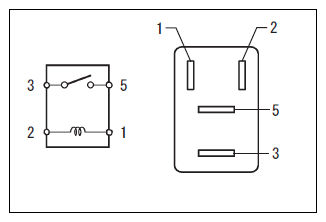

RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω - Inspection of EFI relay (EFI MAIN1)
- Measure the resistance between the terminals.

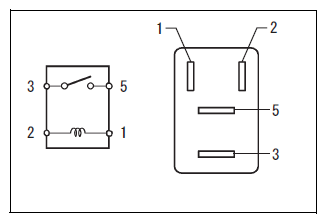

RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω - Inspection of EFI relay (EFI MAIN2)
- Measure the resistance between the terminals.

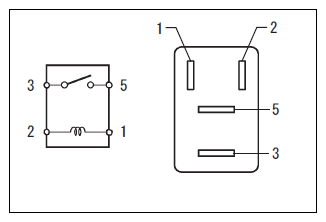

RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω - Inspection of EFI relay (EFI MAIN3)
- Measure the resistance between the terminals.

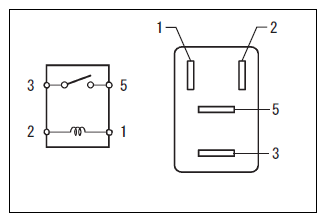

RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω - Inspection of INJ relay (INJ)
- Measure the resistance between the terminals.
RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω - Inspection of ETCS relay (ETCS)
- Measure the resistance between the terminals.
RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω - Inspection of F/PMP relay (C/OPEN)
- Measure the resistance between the terminals.
RESISTANCE SPECIFICATIONSInspection terminals Inspection conditions Standard value 3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more 3 - 5 When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω
