2017 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Engine coolant temperature sensor (FA20): Removal
- Disconnection of the battery ground terminal (Refer to Working precautions and notes )
- Draining of coolant (SUBARU Super Coolant) (Refer to Coolant (FA20) )
- Removal of intake manifold (Refer to REMOVAL )
- Removal of engine water temperature sensor

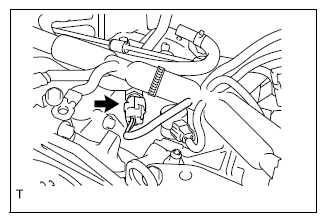

- Disconnect the connector for engine water temperature sensor.

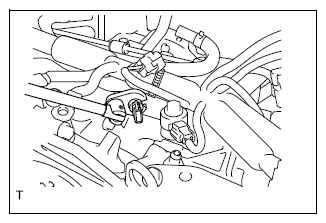

- Remove the engine water temperature sensor and gasket.
