2017 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Engine control computer (FA20): Removal
- Disconnection of the battery ground terminal (Refer to Working precautions and notes )
- Removal of the instrument side panel RH (Refer to Removal )
- Removal of glove compartment door ASSY (Refer to Removal )
- Removal of control module relay ASSY (without smart entry) (Refer to Key lock unit )
- Removal of engine control computer

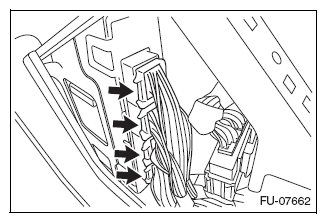

- Disconnect 4 connectors for engine control computer.

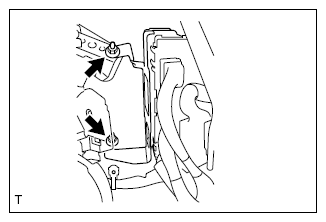

- Remove 2 nuts, and remove the engine control computer.
- Removal of engine control computer bracket

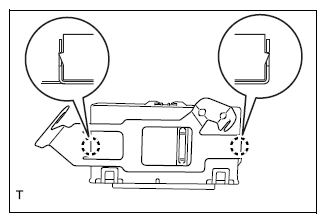

- Release 2 claws, and remove the engine control computer bracket.
