2017 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Injector driver (FA20): Removal
- Disconnection of the battery ground terminal (Refer to Working precautions and notes )
- Injector driver removal

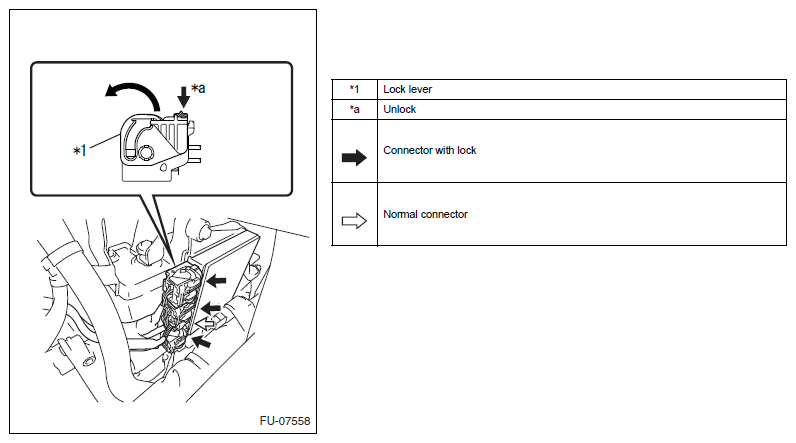

- Move the lock lever in the direction of arrow to unlock the three connectors.
- Disconnect the three connectors with lock and normal connector from the injector driver.
- Remove the three bolts and remove the injector driver.CAUTION: Do not apply any impact to the injector driver.
