Injector driver (FA20): Installation
- Injector driver installationCAUTION:
- Do not apply any impact to the injector driver.
- When installing the injector driver, check that the installation portion of the injector driver to the engine is not dirty. The injector driver is grounded to the engine. Therefore, improper cleaning or installation may cause malfunction of the injector driver.
- Install the injector driver with the three bolts.
Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

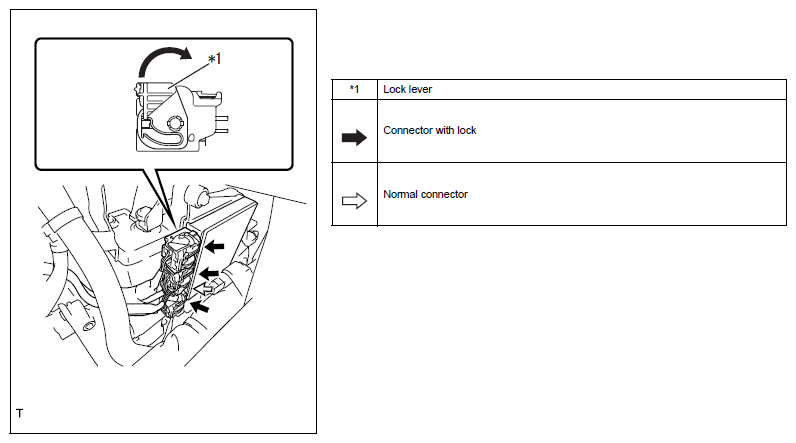

- Connect the three connectors with lock and normal connector to the injector driver and move the lock lever as shown in the figure to lock the three connectors with lock.
