2017 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

Fuel pump ASSY (FA20): Installation

Fuel pump ASSY installation
1. Install a new gasket to the fuel pump ASSY.

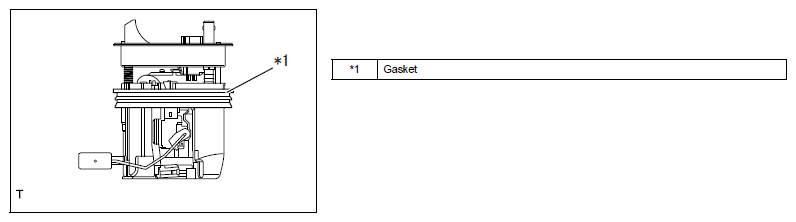

  Fig 1: Identifying Fuel Pump Assembly Gasket
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the fuel sub delivery tube.
  CAUTION:
  - When connecting the fuel sub delivery tube, do not pull the tube strongly.
  - Do not bend the arm of fuel sender gauge ASSY.
3. Insert the fuel pump ASSY into the fuel tank and install the new gasket, which was installed to the fuel pump ASSY earlier, to the fuel tank.

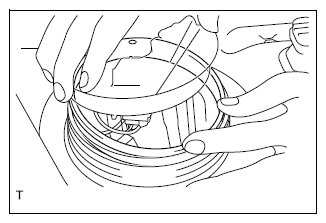

  Fig 2: Inserting Fuel Pump Assembly Into Fuel Tank
  Courtesy of SUBARU OF AMERICA, INC.
