2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

Shift the select lever to "N" range.
Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Lift up the vehicle.
Remove the center exhaust pipe (rear). < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust cover.

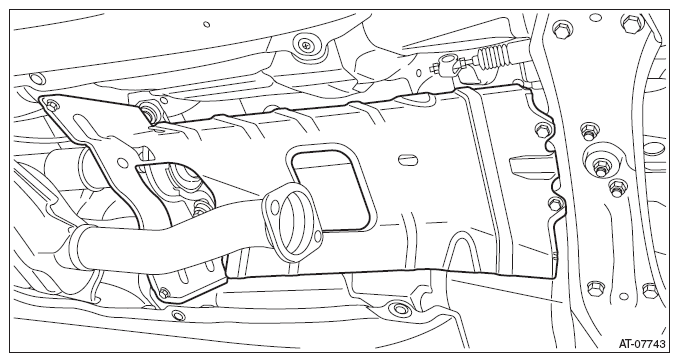

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from the shifter arm.

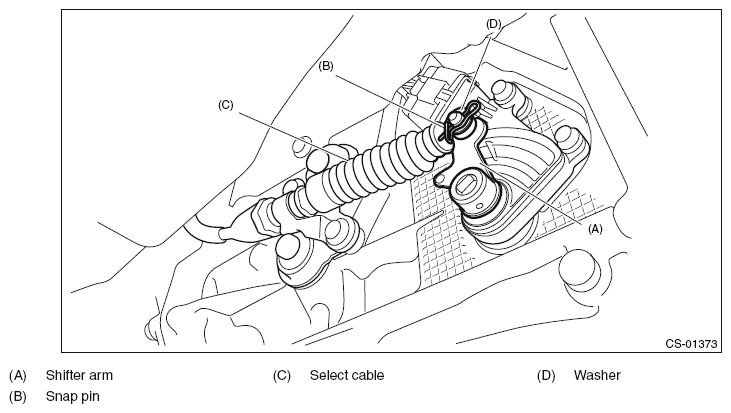

Fig 2: Identifying Shifter Arm, Select Cable, Washer And Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly.

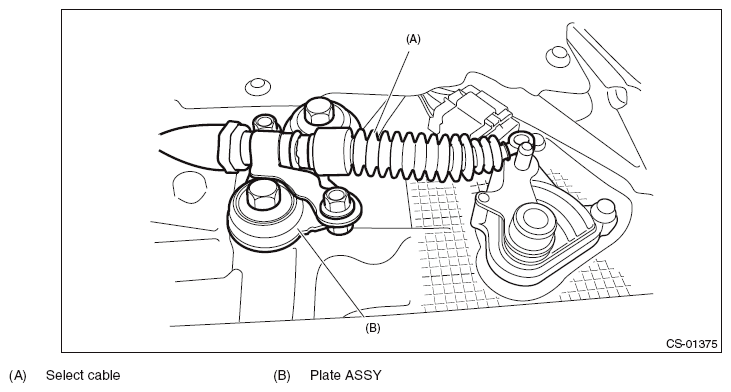

Fig 3: Identifying Select Cable And Plate Assy
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm COMPL.

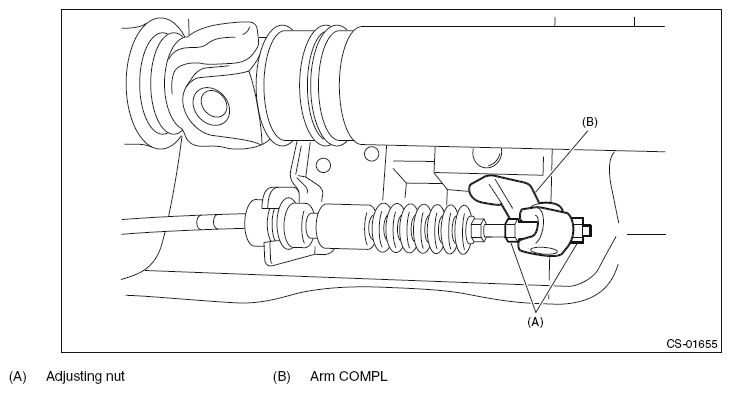

Fig 4: Identifying Adjusting Nut And Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp and remove the cable.

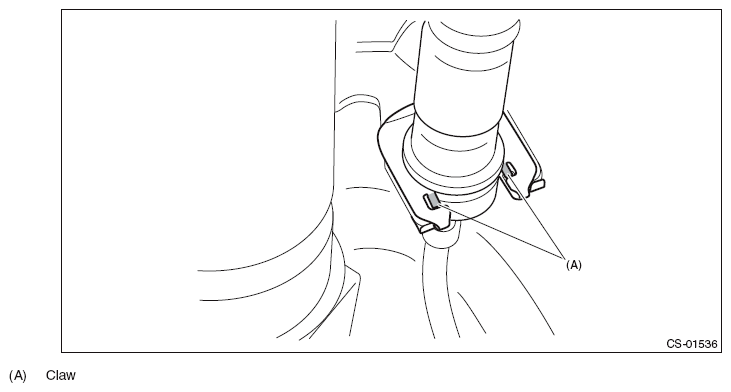

Fig 5: Identifying Claw Of Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
