2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

MT Gear Shift Lever: Assembly

NOTE:

Clean all the parts before assembly.
Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. < Ref. to 6MT GEAR SHIFT LEVER (STI MODEL) , COMPONENT, General Description. >

Mount the bushing and cushion rubber to the stay.

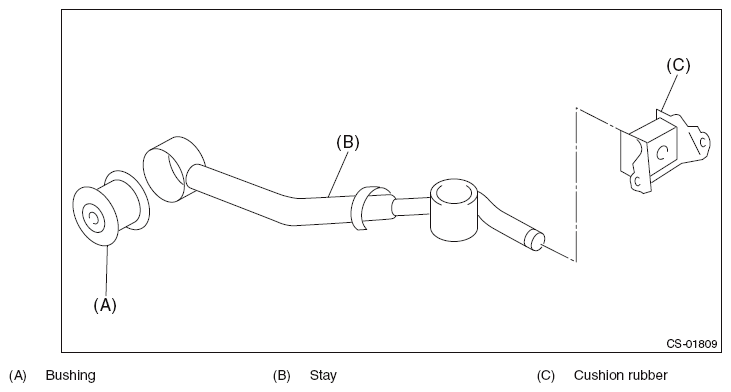

Fig 1: Identifying Bushing, Cushion Rubber And Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the bushing and spacer to boss.

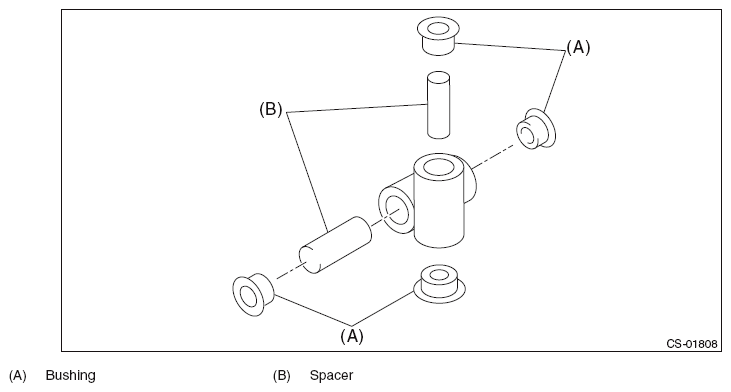

Fig 2: Identifying Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring and install the bushing.
NOTE: Apply grease to the bushing.
